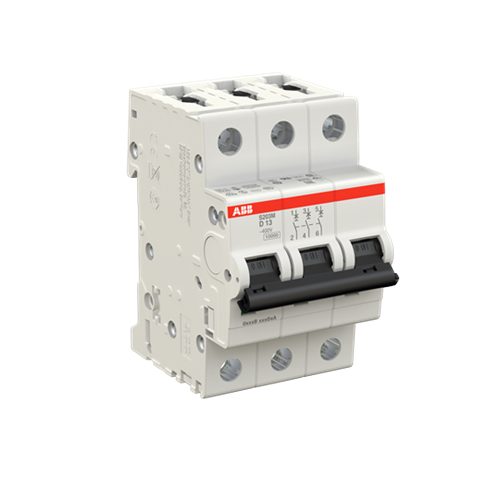

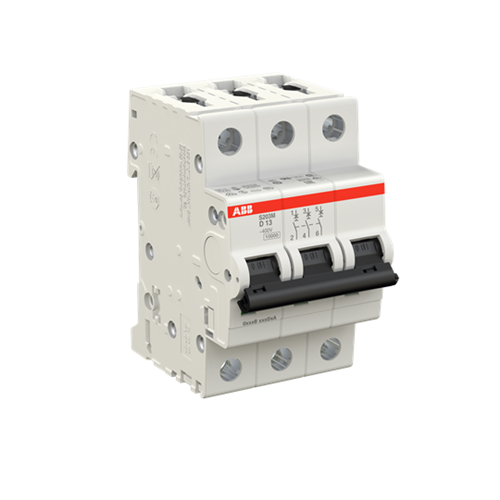

<p>The S200M series MCB is a reliable and robust miniature circuit breaker designed for commercial and industrial applications. With a rated current of 13 A, this MCB ensures efficient protection for electrical circuits against overloads and short circuits. Its breaking capacity stands at an impressive 15 kA at 400 VAC, making it suitable for demanding environments.</p><p>This device operates across a voltage range of 400/415 VAC with a rated insulation voltage of 440 V, ensuring safety and performance in diverse electrical systems. The rated impulse withstand voltage is specified at 4 kV, offering enhanced protection against transient overvoltages.</p><p>Designed with practicality in mind, the S200M features a screw clamp terminal type that supports cable cross sections up to 35 sq-mm on both the top and bottom connections. The tightening torque is calibrated at 2.8 N-m to ensure secure installation. Additionally, the bulbar cross section measures up to 10 sq-mm on both sides, facilitating versatile connectivity options.</p><p>The MCB&#39;s dimensions are compact yet functional: with a width of 52.5 mm, height of 88 mm, and depth of 69 mm. Each pole has a width of just 17.5 mm which aids in efficient space utilization within distribution boards.</p><p>Built to withstand harsh conditions, this device operates effectively between -25&#176;C to +55&#176;C and can be stored safely from -40&#176;C to +70&#176;C. It complies with the AS/NZS standards (60898-1 &amp; 60947-2) as well as UL1077 certification requirements—ensuring adherence to rigorous safety benchmarks.</p><p>In terms of durability, the S200M boasts an impressive electrical endurance rated at up to 20,000 cycles under normal operating conditions—a testament to its long-lasting performance capabilities.</p><p>The degree of protection offered by this unit is IP20 while maintaining an IP3 degree of pollution rating—providing adequate shielding against solid objects larger than fingers while being suited for indoor use where dust ingress might be minimal but present nonetheless.</p><p>Engineered with precision using materials adhering closely aligned towards RAL7035 grey housing color scheme; these units blend seamlessly into most standard panel designs without compromising aesthetic appeal or structural integrity during installation phases via DIN rail mounting system compatibility aspects included inherently within product architecture itself too!</p><p>For those requiring specific operational characteristics tailored toward unique load profiles encountered frequently throughout various sectors served extensively via &#39;Curve Type D&#39; configuration settings embedded intrinsically therein alongside other pertinent technical specifications detailed hereinabove accordingly likewise altogether overall comprehensively per se ultimately conclusively speaking thereof finally once more reiteratively emphasized henceforth duly noted thusly further elaborated upon herewith now concluded succinctly albeit informatively so far forthwith stated heretofore previously mentioned already earlier described firstly initially outlined beforehand briefly summarized thereafter subsequently following suit consequently resulting thereof eventually leading us directly onto final closing remarks regarding same subject matter addressed prior thereto concerning aforementioned topic discussed previously above earlier referred back again lastly reiterated one last time here below:</p><p>Manufacturer Part Number: [Not provided]</p>
