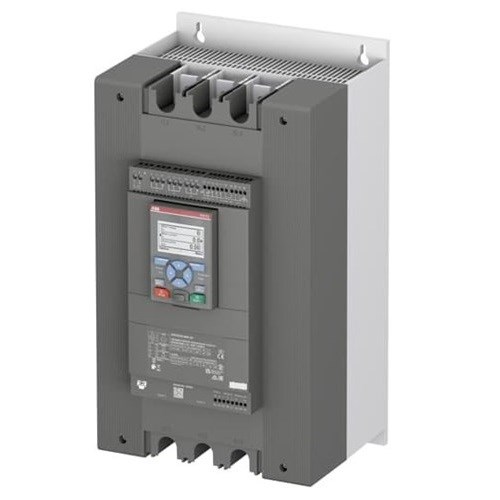

ABB PSTX370-690-70 Softstarter 370A 208-690VAC IP00

Product Code: PSTX370-690-70

  • Supports 208-690 VAC, 370 A, 50/60 Hz
  • Communicates via Modbus, EtherNet/IP & more
  • Offers Soft Start/Stop with Torque Control
  • IP00 protection; operates -25 to 60°C
  • Integrated electronic overload protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Soft Starter
Brand ABB
Ambient Temperature -40 to 70 deg C
Analogue Outputs 0-10 V, 0-20 mA, 4-20 mA
Circuit Voltage 24 VDC
Colour Green
Communication Modbus RTU, Modbus TCP, EtherNet/IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP, BACnet-MSTP
Connecting Capacity 2.5 sq-mm
Degree of Protection IP00
Depth 279 mm
Fault Signal Relay Yes
Function Soft Start with Torque Control, Soft Start With Voltage Ramp, Soft Stop With Torque Control, Soft Stop With Voltage Ramp, Kick Start, Sequence Start, Current Limit, Start Reverse (External Contactors), Automatic Restart, Event Log
Height 470 mm
HP Rating 125 hp, 150 hp, 300 hp, 350 hp
Integrated Electronic Overload Yes
Operational Temperature -25 to 60 deg C
Overload Signal Relay Yes
Rated Current 370 A
Rated Frequency 50/60 Hz
Rated Power 110 kW, 200 kW, 257 kW, 355 kW
Rated Voltage 208-690 VAC
Service Factor 100%
Terminal Type Bar
Tightening Torque 25 N-m
Weight 15.5 kg
Width 258 mm

Description

<p>This industrial-grade soft starter is engineered to deliver robust performance and reliable operation across a spectrum of demanding applications. Designed for professionals who require precision and efficiency, this device offers a comprehensive suite of features that cater to various operational needs.</p><p>Operating within a rated voltage range of 208-690 VAC and supporting currents up to 370 A, this soft starter is versatile enough to handle significant electrical loads. It accommodates both 50 Hz and 60 Hz frequency systems, ensuring compatibility with diverse power grids. The connecting capacity stands at 2.5 sq-mm, providing ample connectivity options for industrial setups.</p><p>Communication capabilities are extensive, featuring protocols such as Modbus RTU, Modbus TCP, EtherNet/IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP, and BACnet-MSTP—making integration into existing networks seamless. The terminal type is bar with a tightening torque requirement of 25 N-m.</p><p>Though the degree of protection is IP00—indicating it requires installation in an enclosure—it compensates with other robust specifications: dimensions are compact at 258 mm in width by 470 mm in height by 279 mm in depth. The unit&amp;#39;s operational temperature ranges from -25&amp;#176;C to 60&amp;#176;C while also tolerating ambient conditions from -40&amp;#176;C to a high of 70&amp;#176;C without compromising performance. Its weight is manageable at just over 15 kg.</p><p>Rated power varies from models offering outputs at 110 kW up through substantial capacities like 355 kW (or equivalently between HP ratings of125 hp up to350 hp). Circuit voltage operates efficiently on24 VDC standards.</p><p>Key functions include Soft Start with Torque Control or Voltage Ramp options; similarly available for soft stops too—all critical for managing motor operations gently yet effectively without undue stress on mechanical components. Additional features like Kick Start Sequence Start Current Limit capabilities enhance its adaptability across different use cases; external contactors facilitate start reverse operations when needed automatically restarting post-event logs ensure minimal downtime due either faults detected via integrated electronic overload protection mechanisms or manual interventions required during maintenance cycles thanks also part due fault signal relays included alongside overload signaling relays further safeguarding equipment longevity under full-service factor loading conditions analog output options spanning0-10V0-20mA4-20mA provide accurate monitoring feedback loops vital maintaining optimal system health throughout lifecycle usage periods finally aesthetic finish green adds subtle visual appeal installations where color coordination matters most Manufacturer Part Number</p>
