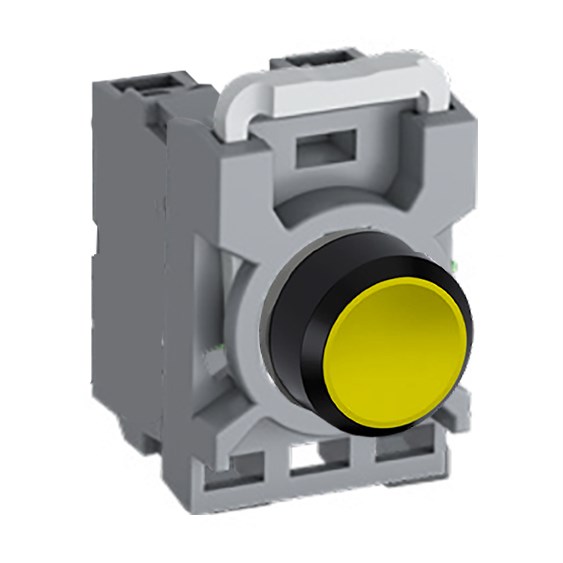

ABB MPPNFYO20 Non-Illuminated Pushbutton Kit 22mm Flush Momentary Yellow 2NO

Product Code: MPPNFYO20

  • Non-illuminated flush actuator
  • IP66 front protection rating
  • Operates in -25 to 70°C range
  • Rated insulation voltage: 690V
  • Includes operator & contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Yellow
Colour Yellow
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This product offers a robust solution for industrial and commercial applications, designed with precision to meet the demands of technical professionals. The non-illuminated actuator is engineered for environments requiring reliable performance without unnecessary extras. Its flush actuator type ensures it remains unobtrusive while still providing ease of use.</p><p>The device boasts a degree of protection with an IP66 rating at the front, making it highly resistant to dust and powerful water jets, ensuring durability in harsh conditions. Meanwhile, the terminal holds an IP20 rating, indicating protection against finger-sized objects. This dual-layered protection makes it suitable for various challenging settings.</p><p>Compliance with multiple standards underscores its reliability and safety credentials. It adheres to EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, assuring users that it meets stringent international guidelines for electrical devices. Additionally, approvals from UL 508 and CSA C22.2 No. 14 further enhance its credibility in North American markets.</p><p>The rated insulation voltage of this unit stands at 690 V while offering a rated impulse withstand voltage of 6 kV—features that ensure robust performance under demanding electrical conditions. With an ambient temperature range from -25 to 70 degrees Celsius, this product is versatile enough to operate in diverse climates without compromising functionality.</p><p>A contact configuration of 2NO (normally open) provides straightforward operation suited for applications where momentary action is required—ideal for situations demanding temporary engagement like push-to-start systems or signaling tasks.</p><p>Constructed with a diameter and cutout size both measuring at 22 mm, installation is streamlined without sacrificing stability or security once mounted. The button&amp;#39;s yellow color ensures visibility even in low-light conditions or busy workspaces—an important consideration for safety compliance and operational efficiency.</p><p>Rated thermal current capacity reaches up to 10 A which supports substantial electrical loads common in many industrial scenarios without overheating risks. Furthermore, the bezel material crafted from plastic contributes to its lightweight yet resilient design—a practical choice balancing durability with cost-effectiveness.</p><p>Included components such as the operator itself along with a contact block and holder simplify procurement by bundling essential parts together—saving time on sourcing compatible accessories separately while ensuring seamless integration into existing setups.</p>
