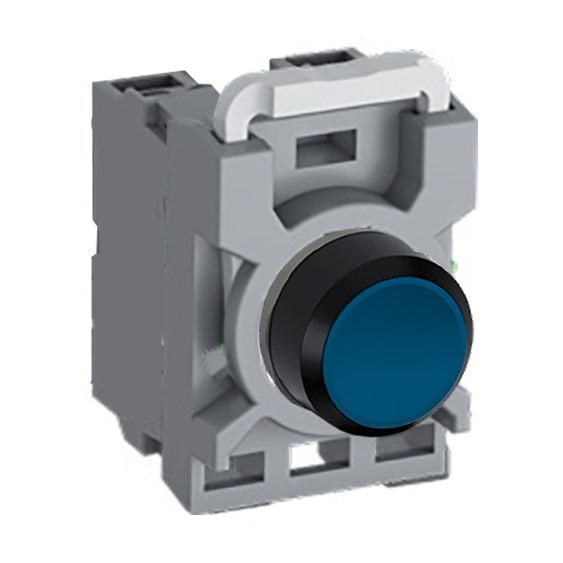

ABB MPPNFLO20 Non-Illuminated Pushbutton Kit 22mm Flush Momentary Blue 2NO

Product Code: MPPNFLO20

  • Non-illuminated, flush blue button
  • IP66 front protection rating
  • Operates in -25 to 70°C range
  • Rated insulation voltage of 690V
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Blue
Colour Blue
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>For professionals in the industrial and commercial sectors seeking a reliable and robust pushbutton, this non-illuminated model offers a suite of features tailored to meet demanding operational requirements. With a flush actuator design, the device ensures ease of use while maintaining an unobtrusive profile. The button&amp;#39;s blue color provides clear visibility in various settings, enhancing user interaction.</p><p>Engineered for durability, it boasts an impressive IP66 front protection rating, making it resistant to dust ingress and powerful water jets—a crucial feature for harsh environments. The terminal side is rated at IP20, suitable for standard installation conditions. Compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, and UL 508 underscores its reliability and safety credentials.</p><p>Operational efficiency is further supported by its ambient temperature range from -25 to 70 degrees Celsius, allowing it to function effectively in diverse climates without performance degradation. The pushbutton supports a rated insulation voltage of up to 690 V and can withstand impulse voltages up to 6 kV—key considerations for high-voltage applications.</p><p>The contact configuration of 2 normally open (2NO) contacts facilitates straightforward integration into existing systems requiring momentary operation. With a rated thermal current capacity of 10 A, this pushbutton caters well to moderate power demands typical in many control circuits.</p><p>Installation is streamlined thanks to its standardized cutout size of 22 mm diameter—a common dimension that simplifies retrofitting or replacement tasks across various panels or consoles. Constructed with a plastic bezel material, the unit balances strength with lightweight characteristics essential for prolonged mechanical life.</p><p>Included components—the operator mechanism along with the contact block and holder—ensure that all necessary elements are provided for immediate deployment upon delivery. This comprehensive package minimizes setup time and effort required by technicians on-site.</p><p>Overall, this product presents itself as a dependable choice for those needing consistent performance under challenging conditions without compromising on safety or functionality standards.</p>
