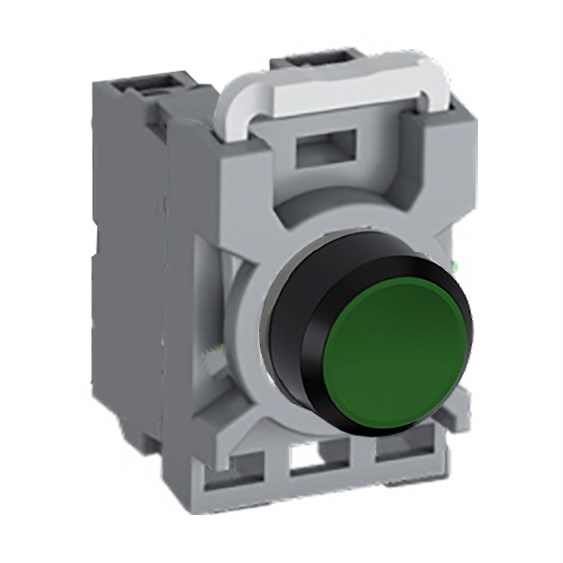

ABB MPPNFGA11 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Green 1NO+1NC

Product Code: MPPNFGA11

  • Non-illuminated, flush green button
  • IP66 front protection rating
  • Operates in -25 to 70°C range
  • 22 mm cutout size with plastic bezel
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When considering a reliable and robust pushbutton for your industrial or commercial applications, this non-illuminated model offers a blend of functionality and resilience. Designed with a flush actuator type and featuring a classic green button, it ensures ease of operation while maintaining an unobtrusive profile in control panels.</p><p>The product is built to withstand demanding environments, boasting an impressive IP66 degree of protection at the front, safeguarding against dust ingress and powerful water jets. The terminal side holds an IP20 rating, ensuring basic protection against accidental contact. This makes it suitable for both indoor and outdoor use in challenging conditions.</p><p>Conforming to multiple international standards like EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, this pushbutton meets rigorous safety and performance criteria. It also complies with UL 508 and CSA C22.2 No. 14 standards for North American markets.</p><p>Operating efficiently within ambient temperatures ranging from -25&amp;#176;C to 70&amp;#176;C, this device is versatile enough for various climates without compromising performance. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, the pushbutton provides excellent electrical insulation properties essential for high-voltage applications.</p><p>The contact configuration includes one normally open (NO) and one normally closed (NC) contact, offering flexibility in circuit design by allowing simultaneous operations or interlocking mechanisms as needed. Its maintained function allows the button to stay in its last position until manually reset – ideal for applications requiring consistent engagement without constant pressure.</p><p>Constructed with durability in mind, the bezel material is plastic which contributes to its lightweight nature while providing adequate protection against environmental factors. The cutout size matches the industry standard at 22 mm diameter ensuring compatibility with most panel designs without additional modifications.</p><p>Rated at a thermal current of up to 10 A, this pushbutton can handle substantial loads making it suitable for various industrial tasks needing reliable switching capabilities. Included components such as the operator unit along with contact block and holder simplify installation processes reducing setup time significantly.</p><p>Overall whether you&amp;#39;re upgrading existing systems or setting up new installations this dependable product delivers practicality coupled with compliance across global standards enhancing operational efficiency whilst ensuring safety throughout usage cycles.</p>
