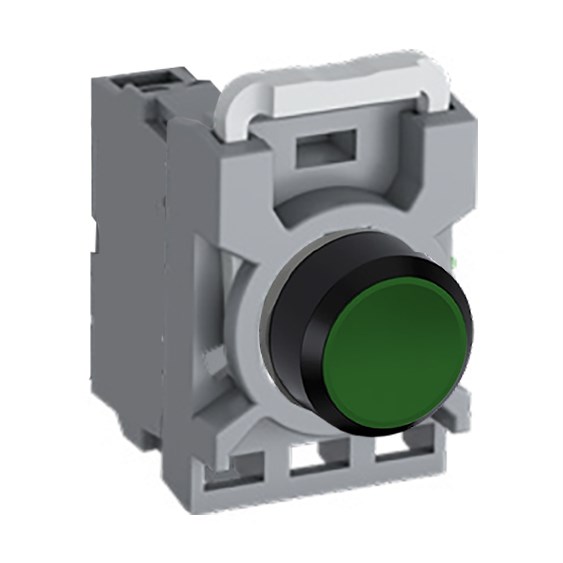

ABB MPPNFGA01 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Green 1NC

Product Code: MPPNFGA01

  • Non-illuminated, flush green actuator
  • High protection: IP66 front, IP20 terminal
  • Operates in -25 to 70°C environments
  • Rated insulation voltage of 690 V
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green
Colour Green
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This industrial-grade, non-illuminated control device is designed with precision and reliability in mind, making it a suitable choice for various applications in the commercial and industrial sectors. Engineered to withstand challenging environments, this product features an IP66 front degree of protection, ensuring resilience against dust and powerful water jets. This robust protection makes it ideal for use in harsh conditions where durability is paramount.</p><p>The terminal side offers an IP20 rating for basic protection against finger contact, aligning with industry standards. The button adheres to several international standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, as well as UL 508 and CSA C22.2 No. 14 among others. These certifications provide assurance of its quality and compatibility with global electrical safety requirements.</p><p>Operating efficiently within a wide ambient temperature range of -25 to 70 degrees Celsius, this device maintains performance stability across diverse climates. It boasts a rated insulation voltage of 690 V and can withstand impulse voltages up to 6 kV—features that ensure reliable operation even under high-voltage conditions.</p><p>The actuator type is flush with a diameter of 22 mm which fits seamlessly into standard cutout sizes while maintaining aesthetic appeal with its green button color—a classic choice for signaling go or start functions in control panels.</p><p>Functionality is straightforward yet effective; the maintained function keeps the switch state constant until manually changed—ideal for operations requiring consistent engagement without continuous user input.</p><p>Constructed from durable plastic materials, the bezel offers both lightweight handling and resistance to environmental wear-and-tear over time. Additionally, it includes essential components such as the operator unit itself along with a contact block and holder ensuring ease of installation right out of the box.</p><p>With a rated thermal current capacity of up to 10 A combined with a single normally closed (1NC) contact configuration this product ensures dependable circuit interruption when needed making it suitable for safely controlling power flows in various systems.</p><p>Overall this control device presents itself as a comprehensive solution balancing functionality compliance durability—and ease-of-use tailored perfectly towards professionals seeking reliable tools for their technical setups without unnecessary complexities or frills beyond what’s necessary Manufacturer Part Number: [Not Provided]</p>
