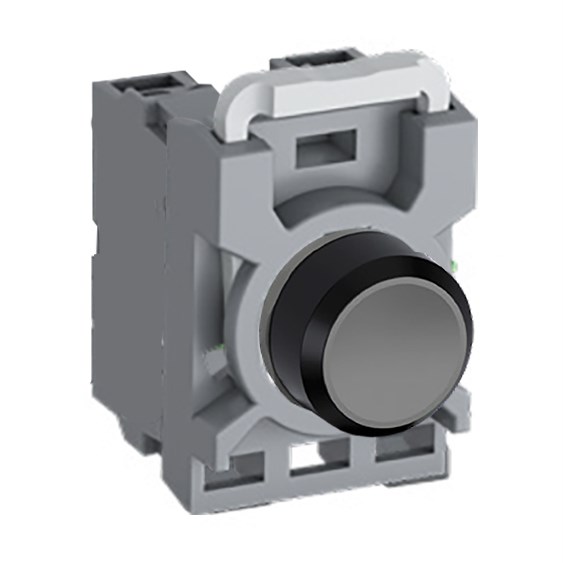

ABB MPPNFCA02 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Clear 2NC

Product Code: MPPNFCA02

  • Non-illuminated, flush actuator design
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Rated insulation voltage of 690 V
  • Includes operator and contact block holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Clear
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When selecting a reliable and durable industrial component, understanding the technical specifics is crucial. This product offers a non-illuminated design with a robust degree of protection, featuring IP66 on the front and IP20 at the terminal. Such ratings ensure it withstands harsh environments while maintaining safety and functionality.</p><p>Complying with multiple international standards like EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No. 14 for North American markets ensures that this product meets rigorous global safety and performance benchmarks.</p><p>Designed to operate in ambient temperatures ranging from -25&amp;#176;C to +70&amp;#176;C, this component is versatile enough for various applications. It has a rated insulation voltage of up to 690 V and can handle impulse voltages up to 6 kV—making it suitable for high-demand electrical systems.</p><p>The contact configuration features two normally closed (2NC) contacts which provide secure operational reliability in control circuits. With an actuator type that is flush-mounted and a diameter of just 22 mm, it&amp;#39;s compact yet effective in its application.</p><p>Functionality is straightforward with a maintained operation mode—ideal for situations where continuous engagement is necessary without constant pressure on the button. The button itself is clear in color adding an unobtrusive aesthetic while ensuring visibility within complex control panels.</p><p>Constructed with practicality in mind, the bezel material consists of durable plastic ensuring both lightweight handling and resistance against environmental factors such as moisture or dust ingress through its cutout size of precisely 22 mm.</p><p>Included components consist of an operator along with a contact block and holder which simplifies installation processes by providing essential parts together—reducing time spent sourcing additional components separately.</p><p>Rated thermal current capacity stands at an impressive 10 A making it adept at handling significant electrical loads without compromising on performance or safety—a critical factor when considering long-term reliability in demanding industrial settings.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
