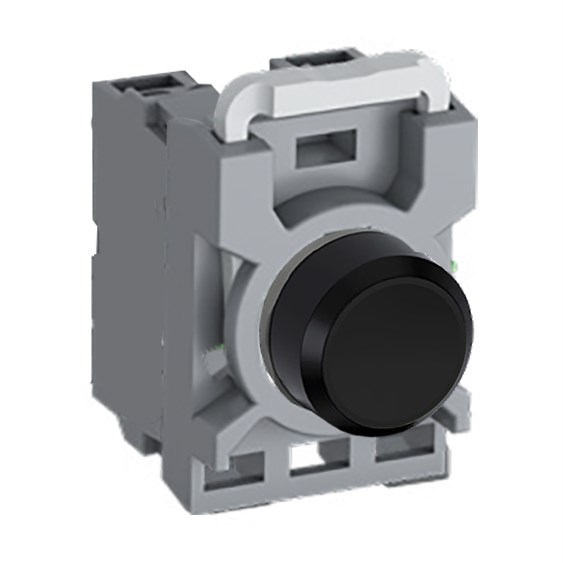

ABB MPPNFBO20 Non-Illuminated Pushbutton Kit 22mm Flush Momentary Black 2NO

Product Code: MPPNFBO20

  • Non-illuminated, flush actuator design
  • High protection: IP66 front, IP20 terminal
  • Operates in -25 to 70°C environments
  • Rated insulation voltage of 690 V
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Black
Colour Black
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This industrial-grade control device is a reliable choice for professionals seeking robust performance without unnecessary frills. Designed with precision, it boasts a flush actuator type and a sleek 22 mm diameter, making it suitable for various commercial applications where space efficiency and ease of use are paramount.</p><p>The button comes in a classic black color, ensuring it fits seamlessly into any professional setting. Its momentary function provides immediate response upon activation, which is ideal for situations requiring instantaneous action.</p><p>Engineered to withstand demanding environments, this product features an impressive degree of protection: IP66 at the front and IP20 at the terminal. This ensures that while the front can resist powerful water jets and dust penetration, the terminals are adequately protected against finger contact. The device adheres to multiple international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, highlighting its compliance with rigorous safety and performance benchmarks.</p><p>One of its key attributes is its rated insulation voltage of 690 V along with a rated impulse withstand voltage of up to 6 kV. This makes it not only versatile but also highly reliable under varying electrical conditions. With an ambient temperature range from -25 to 70 degrees Celsius, this product performs consistently across diverse environmental settings.</p><p>The contact configuration consists of two normally open (2NO) contacts providing straightforward integration into existing systems or new installations. It supports a rated thermal current of up to 10 A which caters well to medium-scale operations in industrial setups.</p><p>Constructed with durability in mind, the bezel material is plastic—offering both lightweight properties and resistance against corrosion or wear over time. The cutout size also stands at an industry-standard 22 mm ensuring compatibility with numerous panel types.</p><p>For added convenience during installation or maintenance tasks, this product includes an operator as well as both a contact block and holder—streamlining your setup process significantly by having all necessary components readily available out-of-the-box.</p><p>Overall this non-illuminated control device represents dependable engineering tailored for those who value functionality backed by comprehensive safety certifications like UL508 &amp;amp; CSA C22.2 No14 among others—all contributing towards assured operational integrity within your system architecture without compromising on essential technical specifications required by discerning Australian audiences today!</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
