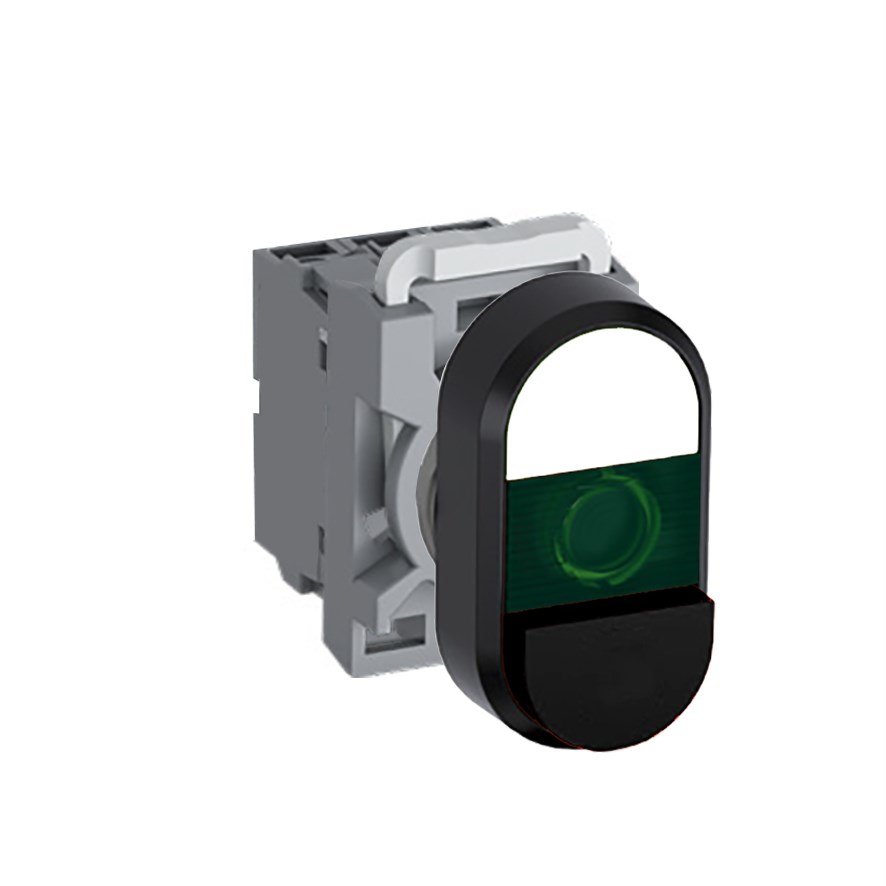

ABB MPDIEGWB711 Illuminated Double Pushbutton Kit Flush/Extended Momentary Green White/Black 230VAC/DC 1NO+1NC

Product Code: MPDIEGWB711

  • Illuminated pushbutton with built-in LED
  • IP66 front protection for harsh environments
  • Operates at 230 VAC/DC, momentary function
  • Suitable for mining and heavy industry use
  • Green lamp with flush/extended actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>The pushbutton product you&amp;#39;re considering is a robust solution tailored for demanding industrial environments, such as mining, construction, and heavy industry. Designed with practicality and durability in mind, it offers several key features that make it a reliable choice for professionals seeking dependable control mechanisms.</p><p>Operating at a rated voltage of 230 VAC/DC, this pushbutton is suitable for various electrical systems. Its illumination feature enhances visibility in low-light conditions, thanks to the built-in green LED lamp. This ensures clear indication of the button&amp;#39;s status at all times.</p><p>The device boasts an impressive degree of protection with IP66 rating on the front and IP20 at the terminal. This means it can withstand harsh environmental conditions like dust and water splashes while maintaining internal safety standards. The product adheres to numerous international standards including EN IEC 60947-1, EN IEC 60947-5-1, UL 508 among others, ensuring compliance with global quality benchmarks.</p><p>With an ambient temperature range from -25 to 70 degrees Celsius, this pushbutton can operate efficiently in extreme temperatures without compromising performance. It has a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV which highlights its capability to handle high-voltage applications safely.</p><p>The contact configuration is versatile with one normally open (NO) and one normally closed (NC) contact setup. It supports a momentary function which is ideal for applications requiring temporary activation or deactivation of circuits.</p><p>A flush/extended actuator type provides flexibility depending on user preference or application requirements. The button itself features an eye-catching design with white upper and black lower colors enhancing both aesthetic appeal and functional clarity.</p><p>Constructed from durable plastic material for its bezel, this pushbutton fits into standard cutout sizes of 22 mm making installation straightforward across different panels or machinery setups. The included operator components such as the contact block holder ensure everything you need comes in one package simplifying assembly tasks.</p><p>This model also incorporates light blocks using LED technology which are known for their energy efficiency and long lifespan reducing maintenance needs over time significantly contributing towards operational cost savings.</p><p>In conclusion if your operations demand reliable equipment capable of enduring tough conditions while meeting stringent safety standards then consider integrating this well-engineered pushbutton into your system architecture today!</p>
