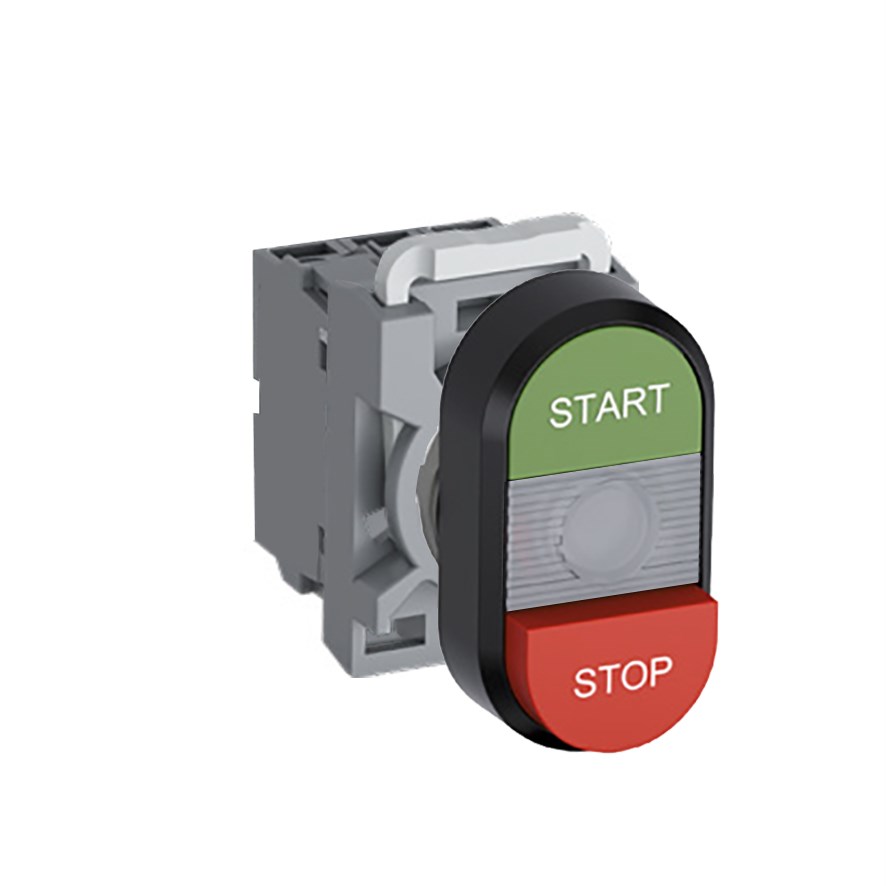

ABB MPDIECGRS702 Illuminated Double Pushbutton Kit Flush/Extended Clear Start/Stop Green/Red 230VAC/DC 2NC

Product Code: MPDIECGRS702

  • Illuminated with built-in LED for clear visibility
  • IP66 front protection, ideal for harsh environments
  • Operates at 230 VAC/DC with 2NC contact config
  • Suitable for mining, construction, heavy industry
  • Green start and red stop buttons with clear lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, reliability and compliance with standards are crucial. This accessory is engineered with these priorities in mind, making it a dependable choice for demanding environments such as mining, construction, and heavy industry sectors.</p><p>Rated to operate at 230 VAC/DC, this illuminated accessory ensures visibility under various conditions thanks to its built-in LED lamp. The clear lamp color enhances clarity while maintaining focus on the critical functions of start and stop operations. With a button configuration that features green for &amp;quot;Start&amp;quot; on the upper section and red for &amp;quot;Stop&amp;quot; on the lower section, users can quickly identify control actions even in low-light settings.</p><p>The product boasts a robust degree of protection with IP66-rated front protection against dust and powerful water jets, while its IP20 rating safeguards terminal areas from finger contact. This makes it suitable for harsh operating conditions where durability is non-negotiable.</p><p>Compliant with multiple international standards including EN IEC 60947-1/5-1/5-5, EN IEC 60073, EN IEC 60529 among others, this accessory aligns with global safety norms ensuring peace of mind during operation. It also meets UL 508 and CSA C22.2 No. 14 standards which are vital for North American markets.</p><p>Designed to withstand ambient temperatures ranging from -25&amp;#176;C to 70&amp;#176;C, it remains functional across diverse climates without compromising performance integrity. Its rated insulation voltage stands at an impressive 690 V along with a rated impulse withstand voltage of 6 kV providing resilience against electrical surges.</p><p>The actuator type offers flexibility between flush or extended configurations depending on user preference or application needs. A reliable contact configuration of 2NC (normally closed) supports operational security by maintaining circuit status unless activated otherwise.</p><p>With a rated thermal current of up to 10 A, this component handles substantial loads effectively contributing to overall system efficiency. The bezel made from durable plastic complements its robust design while the standard cutout size of 22 mm facilitates straightforward installation into existing panels or systems.</p><p>This accessory package includes an operator unit alongside essential components such as contact block holder and LED block ensuring seamless integration into your setup without additional purchases necessary.</p><p>For professionals seeking practical solutions that blend functionality with adherence to stringent standards in challenging environments look no further than this well-rounded offering tailored specifically towards industrial requirements.</p>
