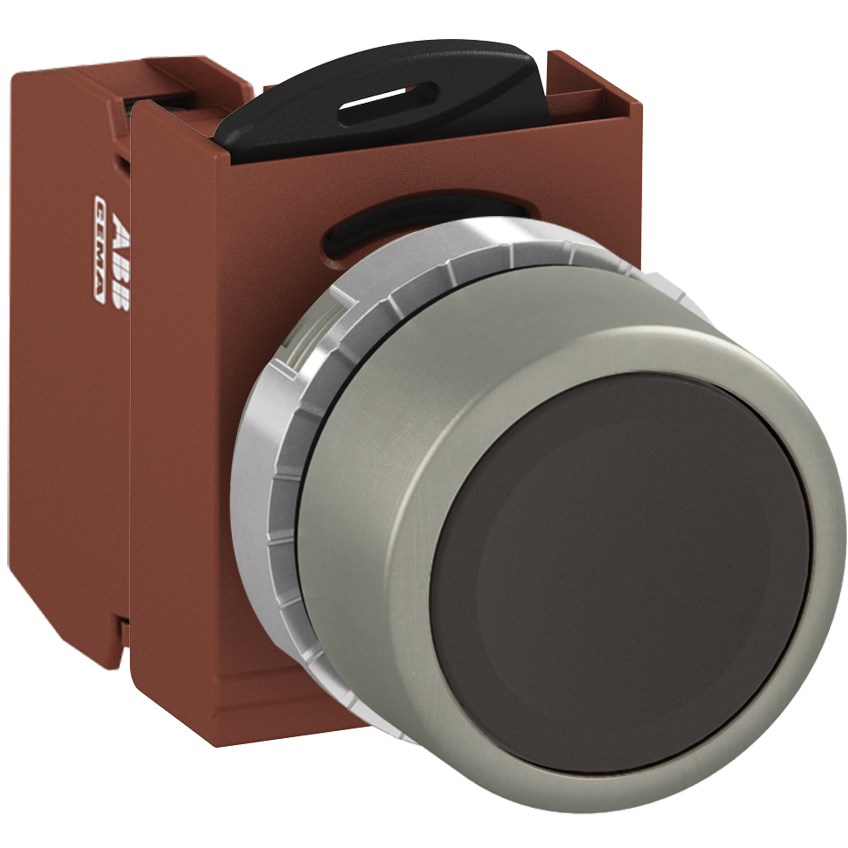

ABB MMPNFBOS10 Non-Illuminated Pushbutton Kit 22mm Flush Momentary Black 1NO Screw

Product Code: MMPNFBOS10

  • IP66 rated for robust protection
  • Operates in -30 to 70°C environments
  • Metal bezel, flush actuator design
  • Suitable for mining & construction use
  • Screw connection for easy setup
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Black
Colour Black
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting a reliable and robust control device for industrial applications, this non-illuminated push button offers a compelling choice. Designed with durability and efficiency in mind, this product is particularly well-suited for environments such as mining, construction, and heavy industries where reliability under harsh conditions is paramount.</p><p>The push button boasts an impressive IP66 degree of protection, ensuring it withstands dust ingress and powerful water jets from any direction. This makes it ideal for challenging environments where exposure to the elements is common. Its compliance with several international standards, including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications further underscores its quality and safety credentials.</p><p>Operating efficiently across a wide ambient temperature range from -30 to 70 degrees Celsius, this push button maintains performance even in extreme temperatures typically encountered on industrial sites. The rated insulation voltage of up to 690 V ensures safe operation within high-voltage systems while the rated impulse withstand voltage of 4 kV adds an extra layer of protection against electrical surges.</p><p>Featuring a screw connection type that facilitates secure and straightforward installation or maintenance work, the device’s contact configuration is set at 1NO (normally open), which suits many standard operational requirements in industrial control systems. With a flush actuator type that provides a sleek profile when installed on panels or equipment surfaces, the design also includes a metal bezel material contributing to its ruggedness.</p><p>The push button fits into standard cutout sizes with its diameter matching industry norms at 22 mm making integration into existing systems seamless without requiring additional modifications or specialized tools. It supports momentary function operations which are critical for tasks requiring temporary activation like machinery start/stop processes.</p><p>Rated for thermal currents up to 10 A this component can handle substantial loads typical in demanding industrial settings providing peace of mind regarding both safety and performance longevity over time.</p><p>With its black button color offering clear visibility against most panel backgrounds while maintaining an understated professional appearance this non-illuminated momentary push button stands out as an efficient solution engineered specifically for tough jobs demanding both resilience and precision.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
