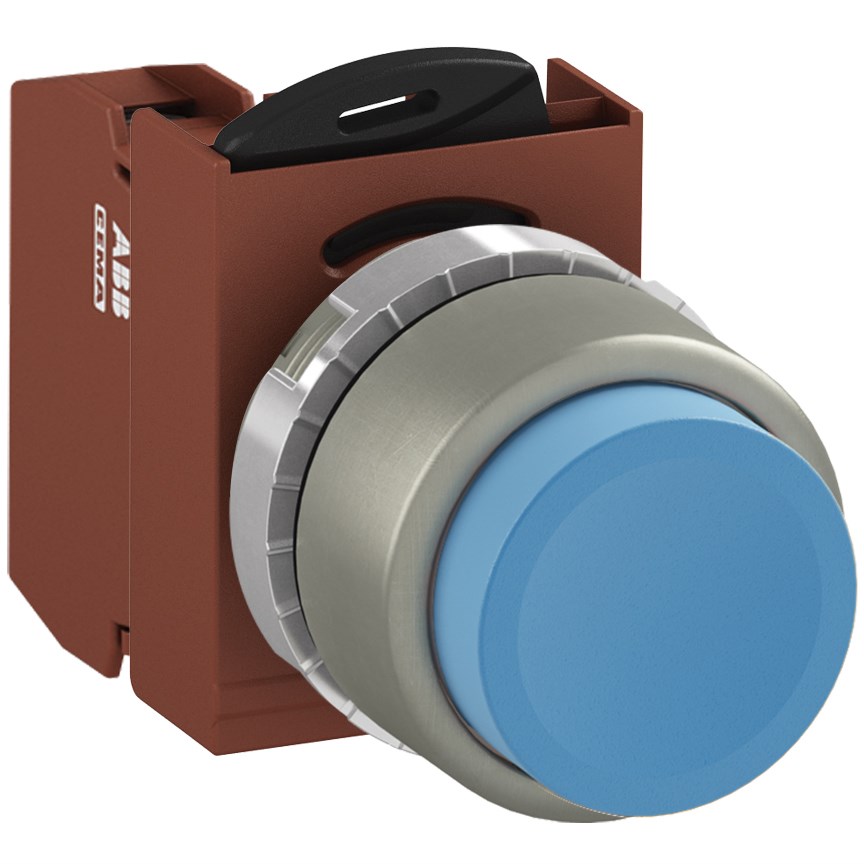

ABB MMPNELOS01 Non-Illuminated Pushbutton Kit 22mm Extended Momentary Blue 1NC Screw

Product Code: MMPNELOS01

  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • 690V insulation voltage with 4kV impulse withstand
  • Screw connection for secure installation
  • Durable metal bezel, blue momentary button
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Blue
Colour Blue
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>For professionals working in mining, construction, and heavy industry sectors, selecting the right components for control systems is crucial. This particular pushbutton offers a reliable solution with its robust specifications tailored to demanding environments.</p><p>Designed with an emphasis on durability and performance, this non-illuminated pushbutton features an IP66 degree of protection. This ensures excellent resistance against dust and powerful water jets, making it suitable for harsh industrial settings. The product adheres to multiple international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14. These certifications underscore its quality and reliability in both safety and operational efficiency.</p><p>The ambient temperature range from -30 to 70 degrees Celsius allows the pushbutton to function effectively across various climatic conditions without compromising performance. Its screw connection type facilitates secure installation while maintaining ease of maintenance or replacement when necessary.</p><p>With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this device is engineered to handle significant electrical loads safely. The contact configuration is a single normally closed (1NC) circuit which suits applications requiring momentary action—ideal for initiating or interrupting processes swiftly.</p><p>The actuator&amp;#39;s extended type design provides ergonomic advantages by ensuring easy operation even when wearing gloves—a common necessity in industrial workspaces. The button itself has a diameter of 22 mm which matches standard cutout sizes for seamless integration into existing panels or new builds.</p><p>Constructed with a metal bezel material, the pushbutton not only boasts aesthetic appeal but also enhances longevity through superior resistance to mechanical stress common in heavy-duty applications.</p><p>Its blue button color can be used for specific signaling purposes according to user requirements or industry norms—adding another layer of customization depending on your system’s needs.</p><p>Overall, this pushbutton stands out as an efficient choice for those seeking dependable functionality combined with compliance to stringent regulatory standards—all wrapped up in a user-friendly package designed specifically for challenging industrial environments.</p>
