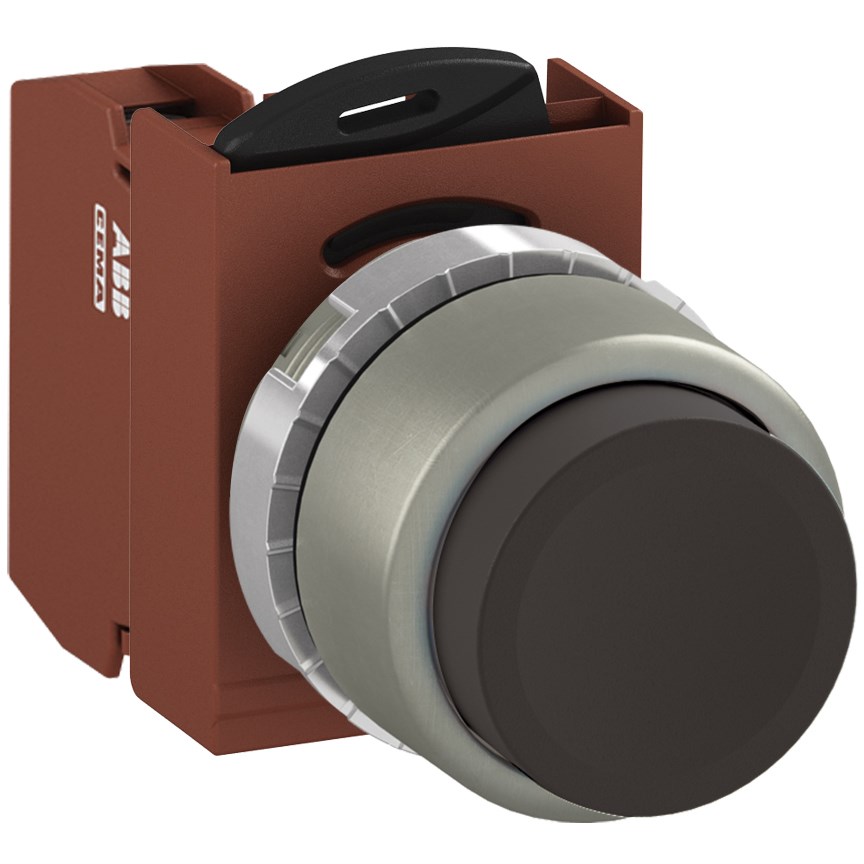

ABB MMPNEBAS10 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Black 1NO Screw

Product Code: MMPNEBAS10

  • IP66 rated for robust protection
  • Operates in -30 to 70°C environments
  • Screw connection for secure installation
  • Suitable for mining and construction use
  • 22 mm metal bezel with black button
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Black
Colour Black
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting a reliable and robust control device for industrial applications, this non-illuminated push button stands out as a dependable choice. Designed specifically for the demanding environments of mining, construction, and heavy industry, it combines durability with functionality to meet your operational needs.</p><p>With an IP66 degree of protection, this push button is engineered to withstand harsh conditions including dust and powerful water jets. This makes it suitable for outdoor or rugged indoor settings where exposure to elements is a concern. The ambient temperature range from -30&amp;#176;C to 70&amp;#176;C ensures that the device performs consistently in extreme climates.</p><p>Adhering to multiple international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No. 14 approvals underlines its global compliance and safety credentials.</p><p>The screw connection type provides secure wiring while supporting ease of installation and maintenance. Rated at an insulation voltage of up to 690 V and an impulse withstand voltage of up to 4 kV, this product is prepared for high-voltage scenarios typical in industrial setups.</p><p>Featuring a contact configuration of one normally open (1NO), the push button supports simple yet effective circuit operations. Its maintained function means that once activated, it remains engaged until manually reset—a crucial feature for certain control processes requiring sustained actions without continuous manual pressure.</p><p>The actuator&amp;#39;s extended design coupled with a standard cutout size of 22 mm facilitates straightforward integration into existing systems or new installations alike. The metal bezel material enhances its resilience against mechanical impacts while providing an aesthetically pleasing finish that complements any control panel setup.</p><p>A rated thermal current capacity of up to 10 A ensures compatibility with various electrical loads prevalent in heavy-duty applications. The black button color offers clear visibility and distinction on control panels often populated by multiple devices.</p><p>In summary, whether you&amp;#39;re involved in mining operations or managing construction projects requiring robust equipment solutions—this push button delivers reliability backed by comprehensive technical specifications suited for intense industrial usage scenarios.</p>
