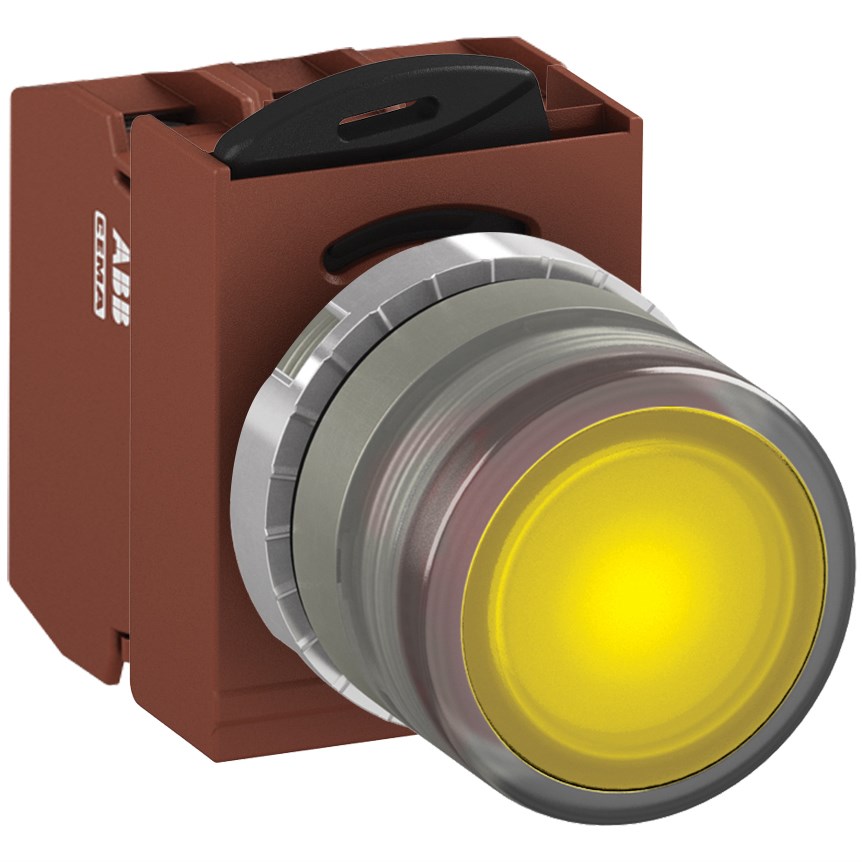

ABB MMPIFYOSL211 Illuminated Pushbutton Kit 22mm Flush Momentary Yellow 24VAC/DC 1NO+1NC Screw LED Block

Product Code: MMPIFYOSL211

  • Operates on 24 VAC/DC with IP66 protection
  • LED illuminated with yellow lamp color
  • Suitable for harsh environments: -30 to 70°C
  • Flush actuator with 22 mm diameter cutout
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Screw
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Yellow
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial or commercial applications, understanding the specifics of a product is crucial. This illuminated actuator is designed for robustness and reliability, making it suitable for demanding environments such as mining, construction, and heavy industry.</p><p>Operating at a rated voltage of 24 VAC/DC, this device ensures compatibility with standard power systems. Its illumination feature enhances visibility in various settings, facilitated by a yellow LED lamp that provides clear indication without compromising on energy efficiency.</p><p>The actuator boasts an impressive degree of protection with an IP66 rating. This means it offers a high level of defense against dust ingress and powerful water jets from any direction, ensuring durability even in harsh conditions. The product conforms to several international standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 certifications—testaments to its quality and safety.</p><p>In terms of environmental resilience, it operates efficiently within an ambient temperature range of -30 to 70&amp;#176;C. Such versatility makes it adaptable to extreme climates encountered across various industries.</p><p>Connection integrity is assured through a screw type connection mechanism which provides secure installation while maintaining ease of use during setup or maintenance phases. The rated insulation voltage stands at a robust 690 V with a rated impulse withstand voltage of 4 kV—offering substantial protection against electrical surges.</p><p>The contact configuration includes one normally open (NO) and one normally closed (NC) contact arrangement allowing flexibility in application design. With a rated thermal current capacity of up to 10 A this actuator can handle moderate loads comfortably.</p><p>Featuring a flush actuator type with a diameter cutout size standardized at 22 mm the design facilitates seamless integration into control panels or operator interfaces without additional modifications required. Constructed from metal the bezel material adds another layer of durability while providing an aesthetically pleasing finish.</p><p>The light blocks are LED-based ensuring long-lasting performance coupled with low maintenance needs due to their extended lifespan compared to traditional lighting solutions like incandescent bulbs or halogens.</p><p>This comprehensive package includes not only the operator but also the contact block maintained accessories LED block and LED itself offering users everything needed right out-of-the-box for immediate implementation into their systems whether new installations or retrofits are necessary given existing infrastructure constraints.</p>
