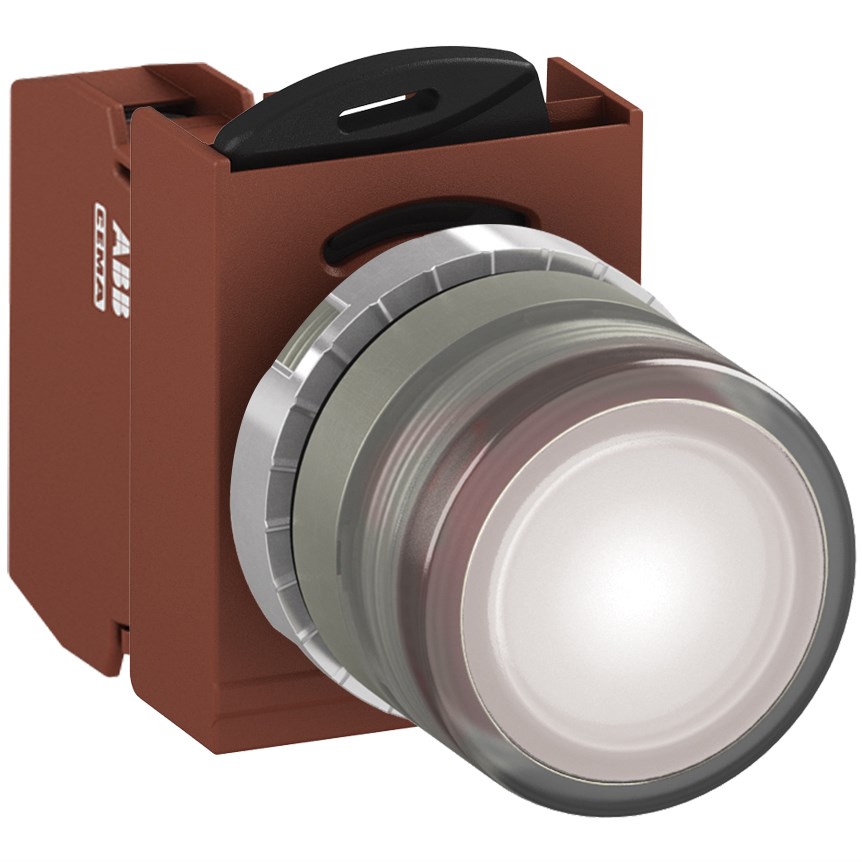

ABB MMPIFWOSP410 Illuminated Pushbutton Kit 22mm Flush Momentary White 230VAC/DC 1NO Screw Power Supply

Product Code: MMPIFWOSP410

  • Rated Voltage: 230 VAC/DC, Illumination: Illuminated
  • High protection with IP66 rating
  • Operates in -30 to 70°C environments
  • Durable metal bezel, 22mm cutout
  • Ideal for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for mining, construction, or heavy industry applications, reliability and durability are paramount. This illuminated pushbutton offers a robust solution with its comprehensive set of features tailored to demanding environments.</p><p>Operating at a rated voltage of 230 VAC/DC, this pushbutton is designed to handle substantial electrical loads. The device&amp;#39;s rated insulation voltage stands at an impressive 690 V, ensuring that it can safely operate in high-voltage environments. Additionally, the contact configuration is 1NO (normally open), making it suitable for momentary operations where temporary activation is required.</p><p>One of the standout features is its degree of protection: IP66. This rating indicates excellent resistance against dust ingress and powerful water jets from any direction, making it highly suitable for harsh industrial settings. Compliance with standards such as EN IEC 60947-5-1 and UL 508 further underscores its quality and adherence to international safety norms.</p><p>The actuator type is flush with a diameter of 22 mm, which fits standard cutouts seamlessly without requiring extensive modifications to existing panels or control stations. The lamp color is white, providing clear visibility even in low-light conditions—a critical factor in ensuring operational safety.</p><p>Temperature resilience ranges from -30&amp;#176;C to 70&amp;#176;C, allowing the pushbutton to function effectively across diverse environmental conditions without risk of failure due to temperature extremes. The connection type utilizes screw terminals for secure and straightforward installation.</p><p>Equipped with a BA9S lamp type within the power supply light blocks category, this product ensures efficient illumination while maintaining energy efficiency. Its rated impulse withstand voltage of 4 kV provides added protection against transient overvoltages commonly encountered in industrial power systems.</p><p>With a thermal current rating of up to 10 A and constructed using durable metal bezel material, this pushbutton combines robustness with functionality. It includes essential components such as the operator unit itself along with contact block accessories that support maintained functions when necessary.</p><p>This versatile component not only meets but exceeds expectations for those seeking reliable operation under challenging conditions typically found within sectors like mining or heavy industry—offering peace of mind through proven performance capabilities backed by rigorous standards compliance.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
