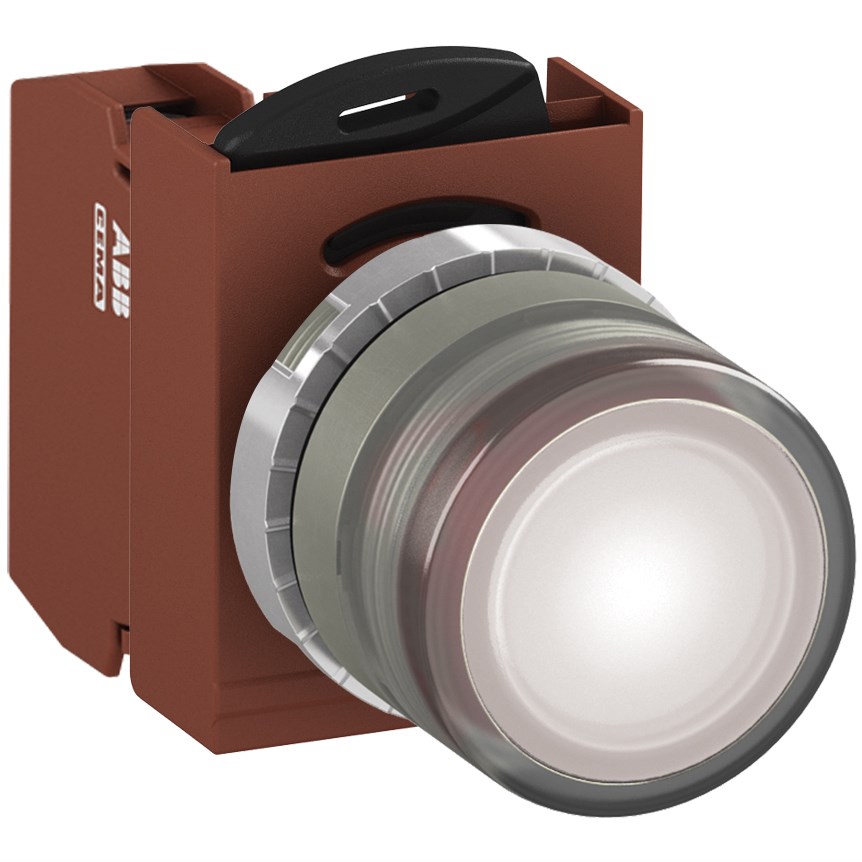

ABB MMPIFWOSP201 Illuminated Pushbutton Kit 22mm Flush Momentary White 24VAC/DC 1NC Screw Power Supply

Product Code: MMPIFWOSP201

  • Operates at 24 VAC/DC with IP66 protection
  • Compliant with EN IEC and UL standards
  • Wide temp range: -30 to 70°C
  • Screw connection, 1NC contact config
  • Durable metal bezel, 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, reliability and compliance with standards are paramount. This product offers a robust solution designed to meet the demanding needs of mining, construction, and heavy industry environments.</p><p>Operating at a rated voltage of 24 VAC/DC, this illuminated component ensures visibility under various conditions. Its IP66 degree of protection guarantees resilience against dust and powerful water jets, making it suitable for harsh environments. The device is built in accordance with several standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 approvals—ensuring it meets international safety and quality benchmarks.</p><p>The ambient temperature range from -30 to 70 degrees Celsius allows for versatile usage across different climates without compromising performance. Featuring a screw connection type for secure installation, the product also boasts a rated insulation voltage of up to 690 V and an impulse withstand voltage of 4 kV—indicating its capability to handle significant electrical stress safely.</p><p>With a contact configuration of 1NC (normally closed), the actuator type is flush with a diameter of 22 mm which fits standard panel cutouts seamlessly. The lamp color is white using the BA9S lamp type known for its efficiency in industrial settings. Designed as a momentary switch functionally enhances control operations effectively during use.</p><p>The unit has been engineered with durability in mind; it supports a rated thermal current of up to 10 A while featuring metal bezel material ensuring long-lasting wear resistance even under frequent operation conditions. The inclusion package consists not only of the operator but also incorporates essential components like the contact block maintained accessories power supply (lamp block) alongside the lamp itself—providing comprehensive setup straight out-of-the-box convenience.</p><p>Whether you&amp;#39;re upgrading existing systems or designing new installations within sectors requiring rigorous equipment such as mining or construction industries this product stands out due its reliable build quality adherence strict compliance norms broad operational parameters all packaged into compact form factor fitting easily into standard setups thanks largely being tailored specifically these high-demand sectors requirements thus ensuring optimal functionality longevity throughout service lifecycle ultimately delivering value investment made towards enhancing operational efficiencies minimizing downtimes associated potential failures non-compliant inferior alternatives might otherwise present challenges overcome through deployment solutions aligned best practices industry expectations today tomorrow alike!</p>
