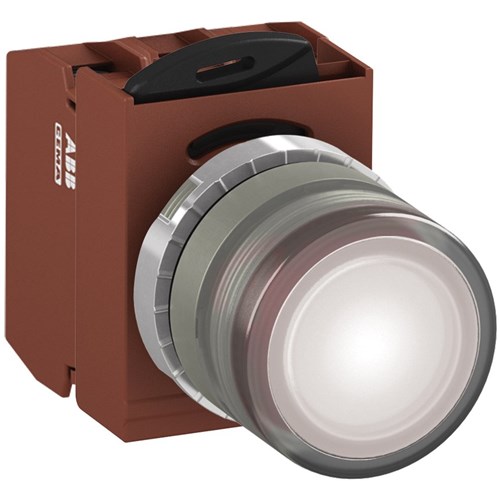

ABB MMPIFWOSL411 Illuminated Pushbutton Kit 22mm Flush Momentary White 230VAC/DC 1NO+1NC Screw LED Block

Product Code: MMPIFWOSL411

  • Rated for 230 VAC/DC, IP66 protection
  • Operates in -30 to 70°C environments
  • Features flush actuator with LED illumination
  • Robust metal bezel and screw connections
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour White
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to robust and reliable components for industrial applications, this illuminated pushbutton switch stands out as a practical choice for professionals across Australia. Designed to meet the rigorous demands of mining, construction, and heavy industry sectors, this product combines durability with efficiency.</p><p>Operating at a rated voltage of 230 VAC/DC, this pushbutton is built to endure challenging environments. Its IP66 degree of protection ensures that it remains dust-tight and water-resistant, making it suitable for outdoor or harsh settings. The product complies with several standards and approvals such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications which further attest to its reliability in various industrial contexts.</p><p>The device operates effectively within an ambient temperature range from -30&amp;#176;C to 70&amp;#176;C. This wide range underscores its adaptability in diverse environmental conditions—from the freezing temperatures found in some mining operations to the heat encountered in construction sites.</p><p>Featuring a screw connection type for secure installation, the pushbutton offers a contact configuration of 1NO+1NC (one normally open and one normally closed contact). This configuration provides flexibility for integration into different control systems.</p><p>Rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage is up to 4 kV—both indicative of its robust electrical performance capabilities. With a flush actuator type and a diameter of just 22 mm, it seamlessly fits into standard panel cutouts without compromising on space or functionality.</p><p>Illumination is provided by an energy-efficient LED lamp with white light output housed within an LED block type light system—this ensures visibility even under low-light conditions or when installed in poorly lit areas. Additionally, the momentary function means that it returns to its original position after actuation—a feature often preferred in control systems requiring temporary engagement.</p><p>The bezel material is constructed from metal adding another layer of durability against physical impacts typically experienced in industrial environments. The package includes everything needed for setup: operator unit contact block maintained accessories LED block along with the LED itself ensuring straightforward assembly right out of the box.</p><p>In summary this illuminated pushbutton switch delivers exceptional performance backed by stringent safety standards making it ideal for demanding applications across various industries where reliability precision and longevity are paramount considerations.</p>
