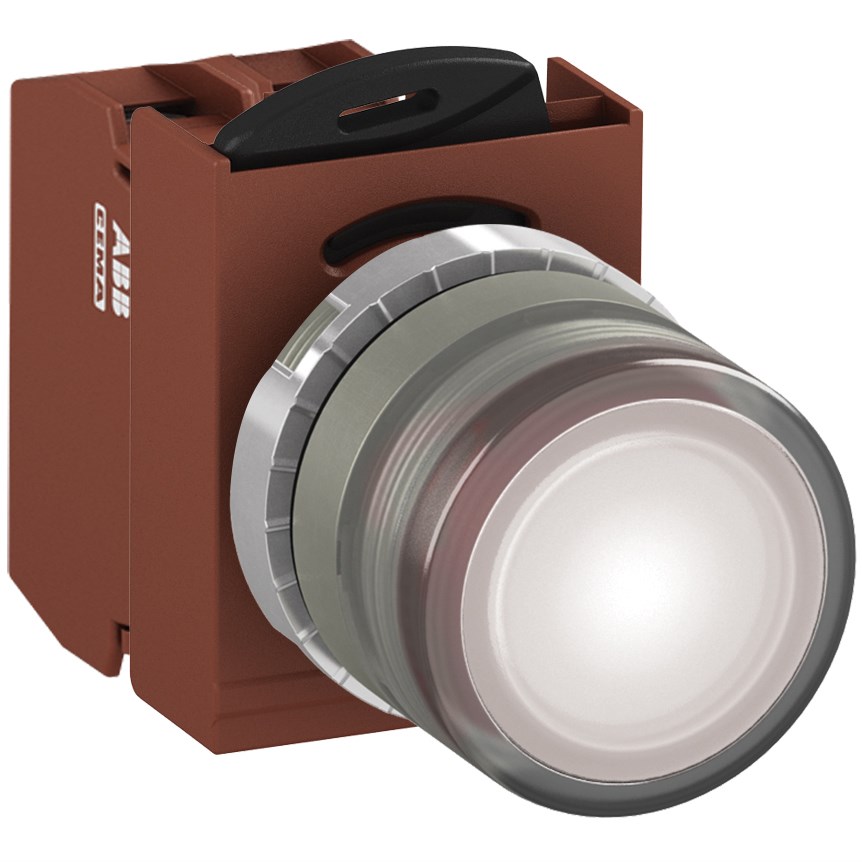

ABB MMPIFWOSL210 Illuminated Pushbutton Kit 22mm Flush Momentary White 24VAC/DC 1NO Screw LED Block

Product Code: MMPIFWOSL210

  • Rated for 24 VAC/DC, IP66 protection
  • Operates in -30 to 70°C environments
  • LED illumination with white lamp
  • Momentary flush actuator, 22mm dia.
  • Suitable for mining & construction use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour White
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting industrial components for mining, construction, or heavy industry applications, reliability and compliance with rigorous standards are paramount. This particular product is designed to meet the demanding needs of such environments with its robust specifications and adherence to international standards.</p><p>Operating at a rated voltage of 24 VAC/DC, this illuminated device ensures visibility in various operational settings. The illumination is provided by a white LED lamp, known for its energy efficiency and longevity. The LED block type light source enhances durability while maintaining consistent performance over time.</p><p>Built to withstand harsh conditions, the unit features an IP66 degree of protection. This rating guarantees complete protection against dust ingress and powerful water jets from any direction, making it ideal for outdoor or challenging indoor settings where exposure to elements is inevitable.</p><p>The device complies with several key standards including EN IEC 60947-5-1 and UL 508 among others. These certifications affirm its quality and safety in electrical operations across different regions and industries.</p><p>Temperature resilience is another standout feature; it operates efficiently within an ambient temperature range from -30 to 70 degrees Celsius. Such versatility ensures that the product remains functional in extreme cold or heat without compromising performance.</p><p>For installation ease, it employs a screw connection type which simplifies setup while ensuring secure connectivity. Its rated insulation voltage stands at 690 V with a rated impulse withstand voltage of 4 kV, providing ample protection against electrical surges.</p><p>The contact configuration consists of one normally open (1NO) contact which supports momentary functions—a common requirement in control systems where temporary activation is needed. With a rated thermal current capacity of 10 A, it offers reliable current handling suitable for industrial applications.</p><p>A flush actuator type combined with a metal bezel material not only provides aesthetic appeal but also adds sturdiness to the design. The diameter measures at 22 mm fitting seamlessly into standard cutout sizes used widely across various equipment panels.</p><p>Included accessories enhance functionality further: operator components ensure smooth operation while maintained accessories allow for additional configurations as needed by specific applications.</p><p>In conclusion, this product offers an impressive blend of technical specifications tailored specifically for demanding environments encountered in sectors like mining and construction—ensuring both safety compliance and operational excellence without compromise on quality or performance efficiency.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
