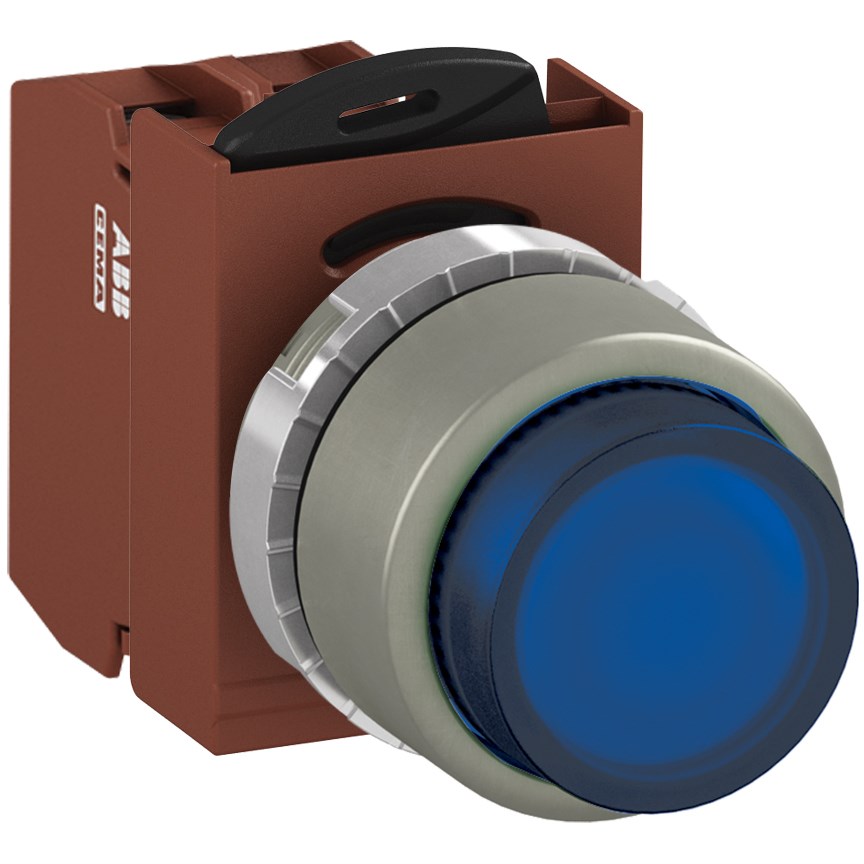

ABB MMPIELOSP210 Illuminated Pushbutton Kit 22mm Extended Momentary Blue 24VAC/DC 1NO Screw Power Supply

Product Code: MMPIELOSP210

  • 24 VAC/DC illuminated switch with IP66 protection
  • Operates in -30 to 70°C ambient temperatures
  • Screw connection for secure installation
  • Blue BA9S lamp with metal bezel, 22 mm cutout
  • Ideal for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to ensuring reliable performance in demanding environments, this illuminated actuator is a robust choice for professionals across the mining, construction, and heavy industry sectors. Engineered with precision, its design accommodates rigorous operational demands while maintaining user-friendly functionality.</p><p>This product operates at a rated voltage of 24 VAC/DC and features an IP66 degree of protection. This ensures exceptional resistance against dust and powerful water jets, making it ideal for challenging industrial settings. The device adheres to multiple standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications—guaranteeing compliance with international safety requirements.</p><p>Designed to withstand ambient temperatures ranging from -30 to 70 degrees Celsius, this component offers versatility across diverse climates without compromising performance. Its screw connection type provides secure electrical connections essential for maintaining consistent operation under tough conditions.</p><p>The actuator&amp;#39;s specifications include a rated insulation voltage of 690 V and a rated impulse withstand voltage of up to 4 kV—ensuring sufficient protection against transient voltages that may occur in industrial power systems. With a contact configuration of one normally open (1NO), it supports straightforward integration into existing circuits.</p><p>The actuator features an extended type for easy access during operation. It has a diameter cutout size of 22 mm which fits standard panel designs seamlessly. The illumination is provided by a blue BA9S lamp type housed within the unit&amp;#39;s metal bezel material—offering both durability and visibility in low-light environments.</p><p>Its momentary function allows for quick actuation when needed without latching—a practical feature for tasks requiring intermittent control inputs. Rated with a thermal current capacity of up to 10 A, the device handles substantial electrical loads efficiently.</p><p>Included with this product are essential components such as the operator mechanism itself along with contact block accessories that ensure maintained functionality over time. Additionally, the light blocks type includes an integrated power supply (lamp block) alongside the lamp itself—facilitating ease of installation and maintenance efforts on-site.</p><p>Overall, this actuator stands out as a dependable choice tailored specifically towards industries where resilience meets performance needs head-on; offering peace-of-mind through quality engineering backed by comprehensive certification credentials.</p>
