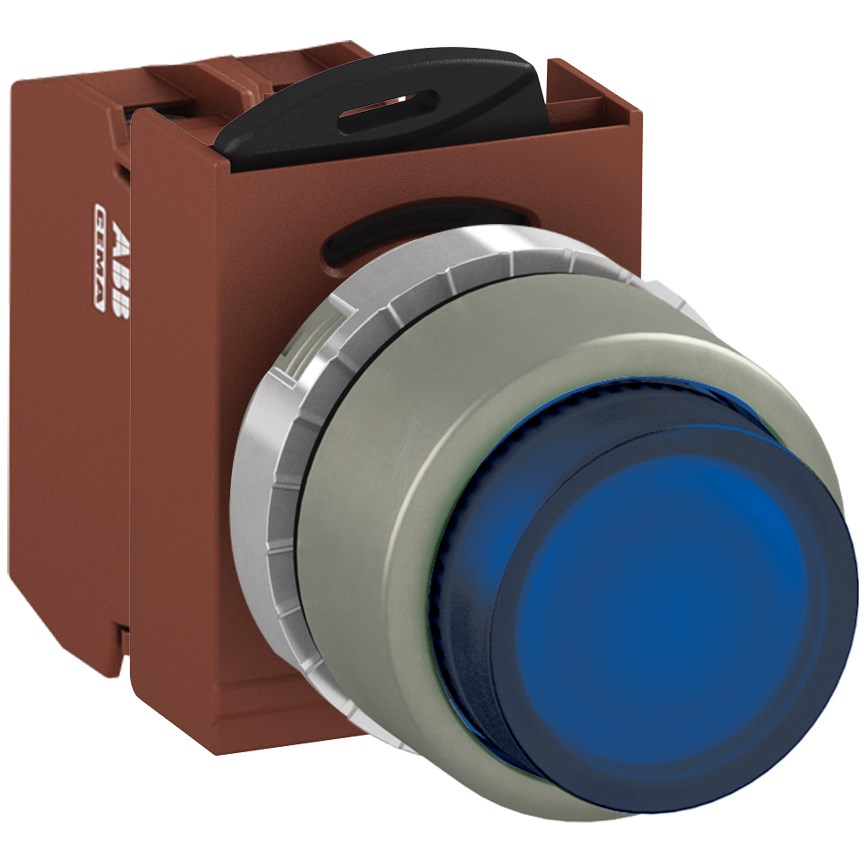

ABB MMPIELOSP201 Illuminated Pushbutton Kit 22mm Extended Momentary Blue 24VAC/DC 1NC Screw Power Supply

Product Code: MMPIELOSP201

  • Operates at 24 VAC/DC with IP66 protection
  • Suitable for mining, construction & heavy industry
  • Momentary function with blue BA9S lamp
  • Extended actuator in a 22 mm metal bezel
  • Withstands temperatures from -30 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting components for industrial and commercial applications, reliability and compliance with international standards are key factors. The product in question is a robust solution designed for demanding environments such as mining, construction, and heavy industry. It offers a range of features that ensure both durability and functionality.</p><p>This device operates at a rated voltage of 24 VAC/DC, making it versatile for various power systems. Its illumination feature enhances visibility in low-light conditions, an essential aspect in many industrial settings. With an impressive degree of protection rated at IP66, this product is well-suited to withstand harsh environmental conditions including dust and powerful water jets.</p><p>The product complies with numerous standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No. 14 certifications. These approvals underscore its safety and performance credentials on a global scale.</p><p>Designed to function efficiently within an ambient temperature range from -30 to 70 degrees Celsius, this component can handle extreme temperatures without compromising performance. The screw connection type ensures secure electrical connections while simplifying installation processes.</p><p>With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, the device provides high-level protection against electrical surges—a critical consideration in industrial applications where equipment safety is paramount.</p><p>The contact configuration features one normally closed (1NC) contact which facilitates momentary operation—ideal for tasks requiring brief activation periods. The actuator type is extended for ease of use even when operators are wearing gloves or working under challenging conditions.</p><p>Measuring at a standard diameter of 22 mm with matching cutout size requirements, integration into existing panels or control systems should be straightforward. The lamp emits blue light through a BA9S type bulb housed within the unit&amp;#39;s metal bezel material—offering both strength and aesthetic appeal.</p><p>For those concerned about current capacity, the device supports a rated thermal current up to 10 A ensuring compatibility across various equipment types typically found in heavy-duty sectors like mining or construction sites.</p><p>Included components comprise an operator module alongside maintained accessories plus power supply elements such as lamp blocks—all contributing towards streamlined assembly processes upon deployment into your system architecture.</p><p>In summary: this product presents itself as not only reliable but also adaptable across multiple industries thanks largely due its comprehensive feature set tailored specifically towards meeting rigorous operational demands expected within professional environments globally recognized by pertinent regulations governing electrical engineering practices today.</p>
