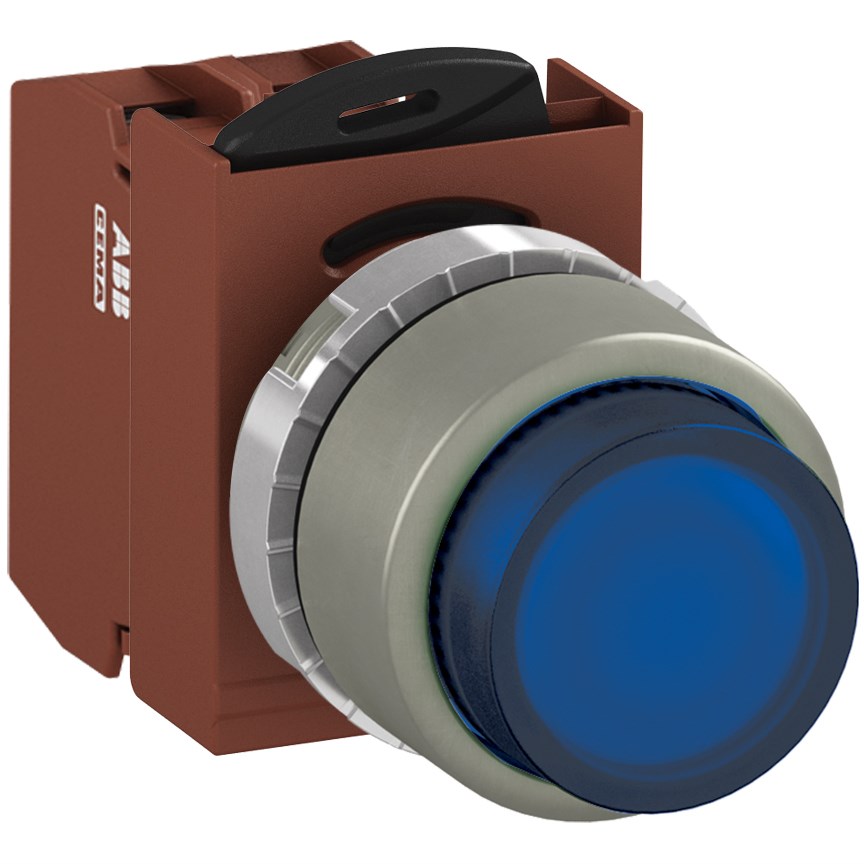

ABB MMPIELOSL401 Illuminated Pushbutton Kit 22mm Extended Momentary Blue 230VAC/DC 1NC Screw LED Block

Product Code: MMPIELOSL401

  • Operates at 230 VAC/DC, suitable for various uses
  • Robust IP66 protection against dust and water
  • Wide temp range: -30 to 70°C for harsh conditions
  • Durable metal bezel with 22 mm cutout size
  • Blue LED illumination for clear visibility
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Blue
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to reliable and robust components for industrial applications, this illuminated pushbutton switch stands out as a practical choice for professionals in mining, construction, and heavy industry sectors. Designed with a focus on durability and performance, this device offers an array of features tailored to meet demanding operational environments.</p><p>Operating at a rated voltage of 230 VAC/DC, the switch is equipped with an extended actuator type that ensures ease of use even in challenging conditions. The illumination feature is powered by a blue LED lamp, providing clear visibility which is crucial in dimly lit or high-stakes settings. The LED block design not only enhances visibility but also contributes to energy efficiency and longevity.</p><p>Safety and protection are paramount in industrial applications. This device boasts an impressive IP66 degree of protection, ensuring resistance against dust ingress and powerful water jets from any direction. Compliance with international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 alongside UL 508 and CSA C22.2 No. 14 approvals further guarantees its reliability across various global markets.</p><p>The mechanical design includes a contact configuration of 1NC (normally closed), suitable for momentary function operations where temporary circuit closure is required. With a rated insulation voltage of up to 690 V and an impulse withstand voltage rating of 4 kV, the switch can handle significant electrical stress without compromising safety or functionality.</p><p>Constructed with a metal bezel material for enhanced durability, the device fits seamlessly into panels requiring a cutout size of 22 mm diameter—matching its overall diameter measurement for easy installation. The screw connection type simplifies wiring tasks while ensuring secure connections essential in vibration-prone environments typically found in heavy industries.</p><p>Rated for thermal currents up to 10 A and capable of operating within ambient temperatures ranging from -30&amp;#176;C to +70&amp;#176;C, this switch adapts well across diverse climatic conditions—from cold storage areas to hot manufacturing floors—without degradation in performance.</p><p>Included components like the operator unit itself along with maintained accessories ensure that users have everything needed for immediate deployment upon purchase; no additional parts are necessary unless specific customizations are desired later on.</p><p>This comprehensive set-up makes it particularly appealing not just from an operational standpoint but also when considering maintenance efficiency over time—a critical factor when evaluating total cost ownership within industrial settings focused on minimizing downtime while maximizing productivity through reliable equipment choices.</p>
