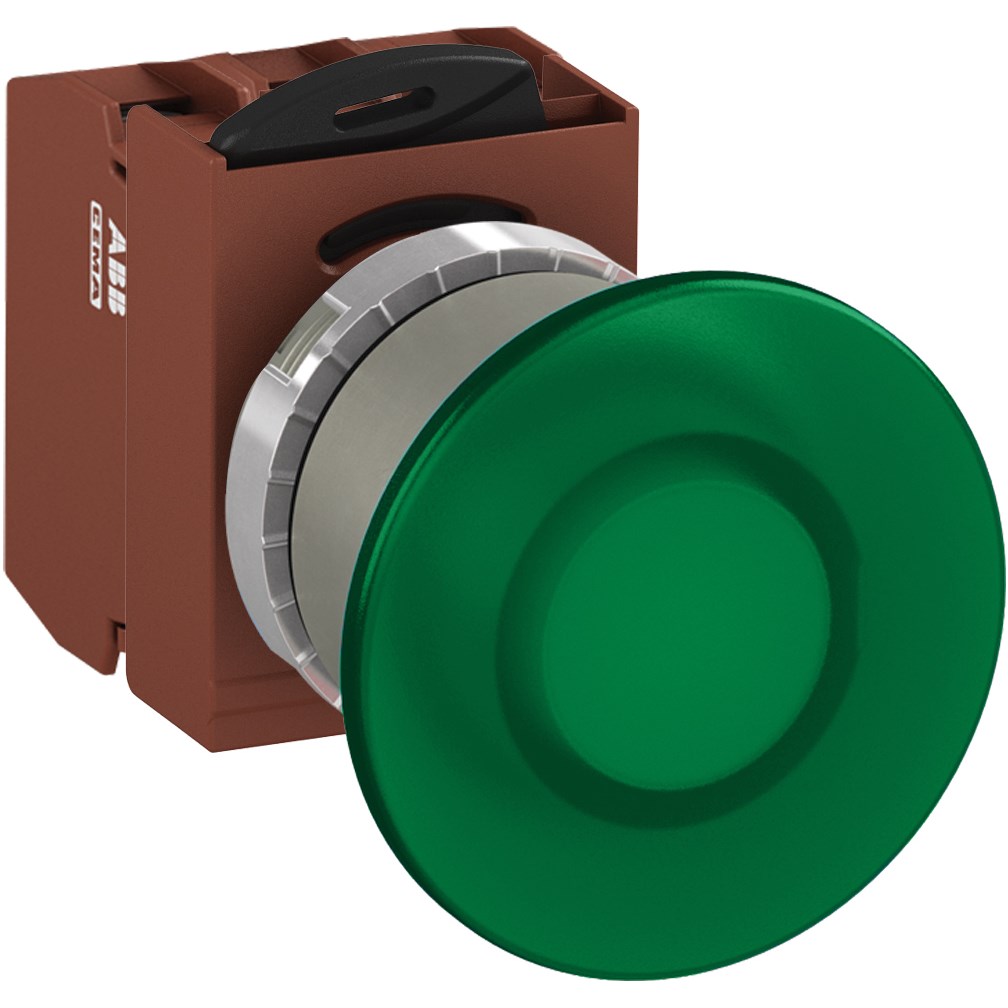

ABB MMMIG4OSP211 Illuminated Pushbutton Kit 40mm Mushroom Momentary Green 24VAC/DC 1NO+1NC Screw Power Supply

Product Code: MMMIG4OSP211

  • 24 VAC/DC illuminated mushroom actuator
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Features 1NO+1NC contact configuration
  • Suitable for mining, construction industries
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Green
Connection Type Screw
Contact Configuration 1NO+1NC
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Green
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, reliability and compliance with industry standards are paramount. This mushroom actuator switch offers a robust solution designed to meet the demanding environments of mining, construction, and heavy industry. </p><p>Rated at 24 VAC/DC, this illuminated device ensures visibility in low-light conditions thanks to its green BA9S lamp type. The illumination feature is particularly beneficial in settings where quick identification is crucial for operational safety and efficiency.</p><p>The product boasts an IP66 degree of protection, making it resistant to dust ingress and powerful water jets—a vital characteristic for maintaining performance in harsh conditions. It adheres to rigorous standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14, ensuring compliance with international safety regulations.</p><p>Designed for versatility across various climates, the ambient temperature range spans from -30&amp;#176;C to 70&amp;#176;C. This wide range allows the switch to function reliably whether operating in cold outdoor environments or heated indoor facilities.</p><p>The connection type utilizes screws for secure installation while supporting a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV—attributes that contribute to its durability against electrical surges.</p><p>Featuring a contact configuration of one normally open (1NO) plus one normally closed (1NC), this momentary function actuator provides flexibility in control circuit designs. The mushroom design with a diameter of 40 mm ensures ease of use during emergency shutdowns or routine operations.</p><p>This unit supports a rated thermal current of up to 10 A which aligns well with many industrial control systems&amp;#39; requirements. Its metal bezel material not only enhances durability but also adds an element of ruggedness suitable for demanding work sites.</p><p>With a cutout size matching the actuator diameter at 40 mm, installation is straightforward into standard panel configurations. The inclusion of maintained accessories alongside the operator component means users receive all necessary parts for immediate integration into their systems.</p><p>Overall, this product delivers on functionality without compromising on quality or safety standards—an ideal choice when seeking reliable control solutions within challenging industrial landscapes.</p>
