Design of Control Element	Short Thumb-grip
Fuse Type	NH000
Main Circuit Electrical Connection	Screw Connection
Position of Control Element	Left
Rated Operational Power AC-23A 400-415 V (kW)	30
Brand	ABB
Cable Cross Section (mm²)	2.5 - 25
Conventional Free-Air Thermal Current - Ith (A)	63
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front Operated
Mounting Type	Busbar Mount
No. of Poles	2
Rated Conditional Short-Circuit Current - Inc (kA)	80
Rated Current (A)	63
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-22A 690V (A)	63
Rated Operational Power AC-23A 380-415V (kW)	55
Rated Short-Time Withstand Current - Icw (kA)	2.5
Rated Uninterrupted Current - Iu (A)	63
Standards and Approvals	IEC 60947-3
Suitable For	NH000
Type	Main Switch

Switch Disconnectors

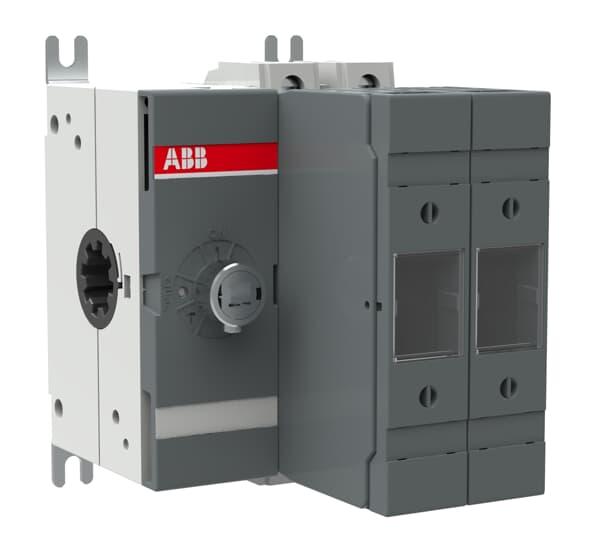

ABB OS63GD02 SWITCH FUSE OS63GD02
