ABB OS630B12P SWITCH FUSE OS630B12P
Zoom
Zoom

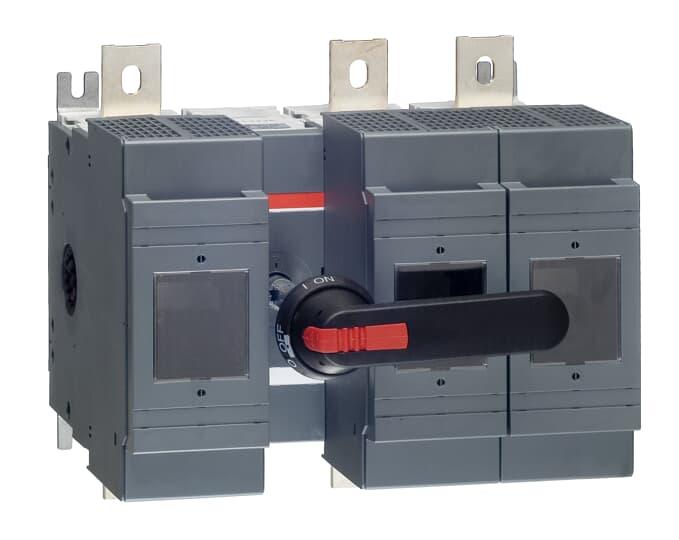

ABB OS630B12P SWITCH FUSE OS630B12P
Product Code: OS630B12P
Switch Fuses,Front Operated,3-pole,12 (Between the Poles),British Standard,C1-C2,Handle and shaft included,
Technical Specifications
Degree of Protection - Handle
IP65
Design of Control Element
Long Turning Handle
Handle Material
Plastic
Main Circuit Electrical Connection
Bolt Connection
Operating Mechanism
Mechanism Between the Poles 12
Position of Control Element
Front Side
Rated Operational Power AC-23A 400-415 V (kW)
355
Terminal Width (mm)
39
Brand
ABB
Conventional Free-Air Thermal Current - Ith (A)
630
Conventional Thermal Current - Ithe (A)
630
Dimensions (mm)
341W X 306H X 233D
Handle Colour
Black
Handle Type
Pistol
Included
Handle, Shaft
Maximum Operational Voltage AC (V)
1000
Mode of Operation
Front Operated
Mounting Type
Busbar Mount
No. of Poles
3
Pollution Degree
3
Power Loss (W)
60/Pole
Rated Conditional Short-Circuit Current - Inc (kA)
80
Rated Current (A)
630
Rated Impulse Withstand Voltage (kV)
12
Rated Insulation Voltage (V)
1000
Rated Operational Current AC-22A 380-415V (A)
630
Rated Operational Current AC-22A 500V (A)
630
Rated Operational Current AC-22A 690V (A)
630
Rated Operational Current AC-23A 380-415V (A)
630
Rated Operational Current AC-23A 500V (A)
630
Rated Operational Current AC-23A 690V (A)
630
Rated Operational Power AC-23A 380-415V (kW)
630
Rated Operational Power AC-23A 500V (kW)
450
Rated Operational Power AC-23A 690V (kW)
630
Rated Operational Voltage (V)
690
Rated Short-Time Withstand Current - Icw (kA)
18
Rated Short-time Withstand Current - Icw (kA/1s)
18
Rated Uninterrupted Current - Iu (A)
570
Standards and Approvals
IEC 60947-3
Suitable For
Shape C1-C3
Terminal Type
Lug terminals
Type
Main Switch
Documents
Datasheet
IPD Product Catalogue V17
Products to compare:
Compare Selected
Remove All
Print
Comparing
Products
