Degree of Protection - Handle	IP65
Design of Control Element	Long Turning Handle
Handle Material	Plastic
Main Circuit Electrical Connection	Bolt Connection
Operating Mechanism	Mechanism Between the Poles 12
Position of Control Element	Front Side
Rated Operational Power AC-23A 400-415 V (kW)	230
Terminal Width (mm)	25
Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	400
Conventional Thermal Current - Ithe (A)	400
Dimensions (mm)	255W x 230H x 193D
Handle Colour	Black
Handle Type	Pistol
Included	Handle, Shaft
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front Operated
Mounting Type	Busbar Mount
No. of Poles	3
Pollution Degree	3
Power Loss (W)	45/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	80
Rated Current (A)	400
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-22A 380-415V (A)	400
Rated Operational Current AC-22A 500V (A)	400
Rated Operational Current AC-22A 690V (A)	400
Rated Operational Current AC-23A 380-415V (A)	400
Rated Operational Current AC-23A 500V (A)	400
Rated Operational Current AC-23A 690V (A)	400
Rated Operational Power AC-23A 380-415V (kW)	400
Rated Operational Power AC-23A 500V (kW)	280
Rated Operational Power AC-23A 690V (kW)	400
Rated Operational Voltage (V)	690
Rated Short-Time Withstand Current - Icw (kA)	14
Rated Short-time Withstand Current - Icw (kA/1s)	14
Rated Uninterrupted Current - Iu (A)	400
Standards and Approvals	IEC 60947-3
Suitable For	NH0
Terminal Type	Lug terminals
Type	Main Switch

Switch Disconnectors

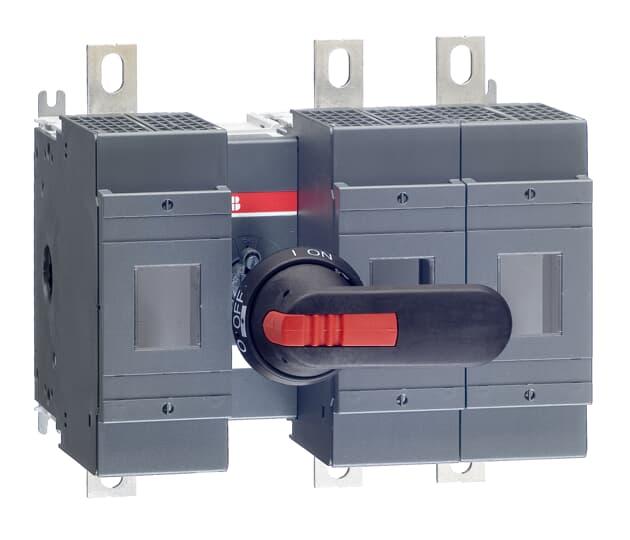

ABB OS400D12P SWITCH FUSE OS400D12P
