Brand	ABB
Fuse Size	A2-A4
Fuse Type	British Standard
Operating Mechanism	Front Operated
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Insulation Voltage	1000 V
Rated Operational Current AC-21A (A)	(500 V) 160 A (690 V) 160 A
Rated Operational Current AC-22A (A)	(500 V) 160 A (690 V) 160 A
Rated Operational Current AC-23A (A)	(500 V) 160 A (690 V) 160 A
Rated Operational Power AC-23A (kW)	(220 ... 240 V) 45 kW (400 V) 75 kW (415 V) 75 kW (500 V) 90 kW (690 V) 132 kW
Switching Type	03 (Left Side)
Terminal Width (mm)	20 mm
Type of Mounting	Base mounting
Cable Cross Section (mm²)	2.5 ... 25 mm²
Conventional Free-Air Thermal Current - Ith (A)	T = 40 °C 160 A
Conventional Thermal Current - Ithe (A)	Fully Enclosed 160 A
Dimensions (mm)	140 * 147 * 115 [HWD]
Handle Type	Pistol handle and shaft included
No. of Poles	3
Pollution Degree	3
Power Loss (W)	at Rated Operating Conditions per Pole 12 W
Rated Conditional Short-Circuit Current - Inc (kA)	(690 V) 80 kA
Rated Current (A)	Main Circuit 160 A
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage AC (V)	Main Circuit 690 V AC
Standards	IEC 60947-3
Terminal Type	Lug terminals
Tightening Torque (Nm)	15 ... 22 N·m

Switch Disconnectors

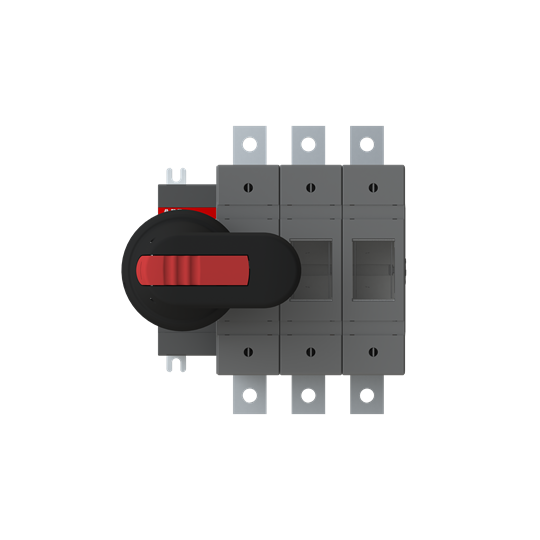

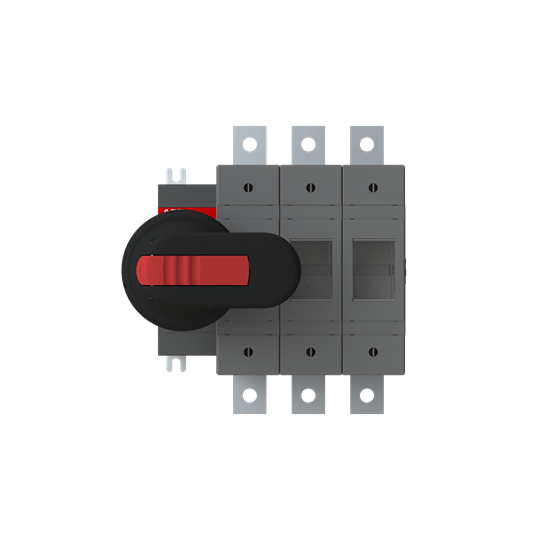

ABB FUSE SWITCH 160A 3P F/OPER IP65 HANDLE+SHAFT A2-A4 FUSE LEFT HAND MECH OS160GB03P
