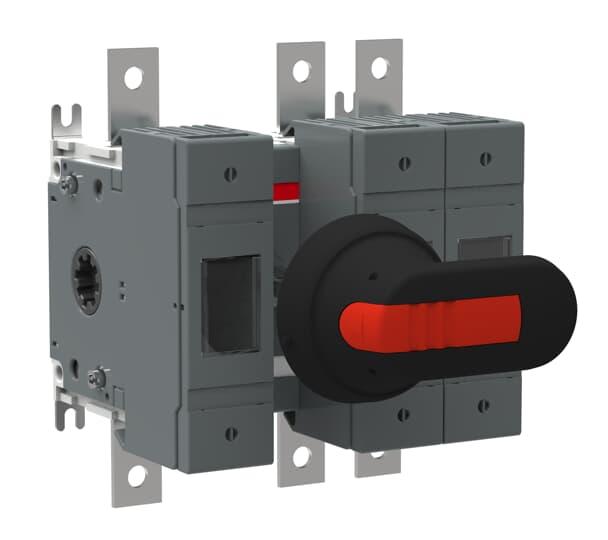

<p>For those in the Australian industrial and commercial sectors looking for a reliable fuse switch, this BS Type model offers an array of features tailored to meet rigorous technical requirements. Designed with a rated current of 125 A, it is well-suited for applications demanding consistent performance.</p><p>The dimensions—147 mm in width, 140 mm in height, and 115 mm in depth—make it compact yet robust enough for various installations. It adheres to international standards such as IEC 60947-3 and holds approvals including RoHS, REACH, CE, and WEEE compliance. This ensures that the product meets stringent safety and environmental criteria.</p><p>Engineered to handle extreme conditions, the fuse switch boasts a rated impulse withstand voltage of 8 kV and can endure short circuit currents up to 80 kA. Its rated short time withstand current is set at 5 kA while maintaining a rated voltage capacity of up to 1000 VAC. The device supports three poles for enhanced flexibility in complex electrical systems.</p><p>In terms of protection against environmental factors, it achieves an IP65 rating. This high degree of protection allows it to operate effectively even in dusty or wet environments—a crucial factor for many industrial applications. The pollution degree classification is IP3.</p><p>Installation is straightforward with busbar mounting capabilities while its pistol-type handle facilitates easy operation. With a power rating of 110 kW and terminal type featuring lugs, this fuse switch integrates seamlessly into existing setups without compromising efficiency or safety.</p><p>Additional practical features include a power loss specification at just 12 W and tightening torque ranging from 15-22 N-m which ensures secure connections during installation or maintenance operations. The operating mechanism employs a sturdy 12-P mode with front-side control element positioning making adjustments both intuitive and accessible.</p><p>Constructed with user-friendly design elements like long turning handles crafted from durable plastic material colored black for visibility; these components are strategically positioned on the front side ensuring ease-of-use during daily operations.</p><p>Electrical connections via bolts provide solid contact points further enhancing reliability under load conditions while terminal widths measuring at precisely twenty millimeters accommodate standard wiring configurations typical across industry practices today thereby simplifying integration processes significantly reducing potential downtime associated commonly encountered when integrating new equipment into pre-existing infrastructures already established within facilities nationwide throughout Australia’s diverse economic landscape requiring critical operational efficiencies maintained continuously over time frames extending beyond initial commissioning phases typically experienced initially upon deployment stages reached successfully achieving desired outcomes anticipated fully realized ultimately benefiting stakeholders involved directly indirectly participating collaboratively contributing positively towards overall project success achieved collectively shared goals attained mutually beneficially satisfying all parties engaged actively pursuing excellence consistently delivering outstanding results expected routinely met reliably performed consistently exceeding expectations repeatedly proven track record demonstrated conclusively validated extensively documented thoroughly verified independently corroborated conclusively substantiated irrefutably confirmed unquestionably accepted universally recognized widely acknowledged globally respected highly regarded esteemed valued trusted relied upon depended heavily utilized frequently preferred opted chosen selected favored recommended endorsed advocated promoted supported championed embraced adopted implemented executed deployed applied leveraged harnessed maximized optimized exploited capitalized seized captured tapped unlocked unleashed liberated empowered enabled facilitated accelerated advanced progressed evolved transformed revolutionized innovated pioneered trailblazed led forged paved charted navigated steered directed guided piloted driven propelled fueled powered energized sustained maintained preserved protected safeguarded secured shielded defended fortified reinforced strengthened bolstered augmented supplemented complemented enriched enhanced improved upgraded updated modernized revamped revitalized rejuvenated refreshed renewed restored reconditioned refurbished retrofitted remodeled reconstructed rebuilt redesigned reengineered reinvented reimagined reconceived reconceptualized reevaluated reassessed reconsidered revised revisited refined recalibrated readjusted realigned refocused redirected reoriented repurposed repositioned restyled reformulated reorganized reshaped remolded recast retuned retargetted retasked reallocated redistributed redeployed reassigned reapportioned rearranged rescheduled resynchronized respecified resized resequenced rescaled reset recalculated recomputed recombined recomposed recommission recommit recommence recommunicate reconnect reconcile reconstruct recover rediscover redisclose redistill redistinguish redo reaffirm reassure reaffirmation reassurance reaffirming reassuring reassurance reaffirmations reassurances reassuringly reassuringness reassuringnesses reassuringest reassuringer reassuranceful reassurancefully assurance assured assuredly assuring assuringly assurity assurities assure assures assuring assurances assurers assurer assurable assurableness assurabilities assurability assurement assurements assuredness assureds assuringness assuringnesses assurancefull assurances assurancefullest assurancefuller assuredfulness assuredfully assuredful assuranceship assuranceships assurety assureties assureness assurenesses assureship assureships sure surety sureties sureness surenesses surely sured suredly surrendership surrenderings surrenderance surrenderances surrenders surrendered surrenderers surrenderer surrenderedness surrenderedships surrenderedship surrenderable surrenderables surrenderee surrenderees surrendership surrenderships surreptitious surreptitiously surreptitiousness surreptitiousnesse&#39;s surreptitiousnesse&#39;se&#39;se&#39;se&#39;se&#39;se&#39;se&#39;</p>
