Product Code: OTP75A3M

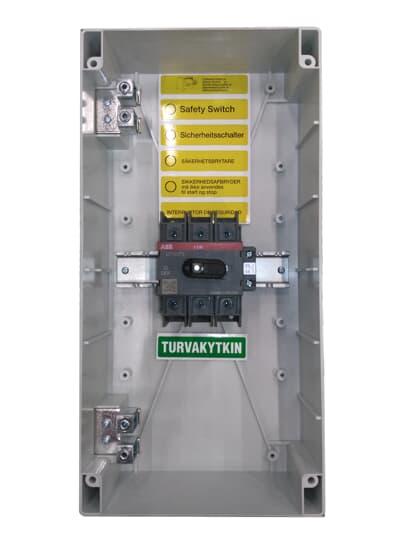

Safety switch, 3-p. 415V AC23 80A, 37kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

Cable Outlets per Side	2xM50+M16/2xM50+M16
Control Element Colour	Red
No. of Normally-open Auxiliary Contacts	1
Brand	ABB
Conventional Thermal Current - Ithe (A)	115
Degree of Protection	IP65
Dimensions (mm)	200W x 400H x 140D
Enclosure Material	Plastic
Handle Colour	Red/Yellow
Handle Type	Selector
Maximum Operational Voltage AC (V)	750
NEMA Degree of Protection	1
No. of Poles	3
Rated Operational Current AC-22A 415V (A)	100
Rated Operational Current AC-22A 500V (A)	100
Rated Operational Current AC-23A 380-415V (A)	80
Rated Operational Current AC-23A 415V (A)	80
Rated Operational Current AC-23A 500V (A)	60
Rated Operational Power AC-23A 380-415V (kW)	37
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	2.5
Rated Short-time Withstand Current - Icw (kA/1s)	2.5
Rated Uninterrupted Current - Iu (A)	115
Suitable For	Distribution Board Installation
Type	Main Switch
Weight (kg)	2.2
