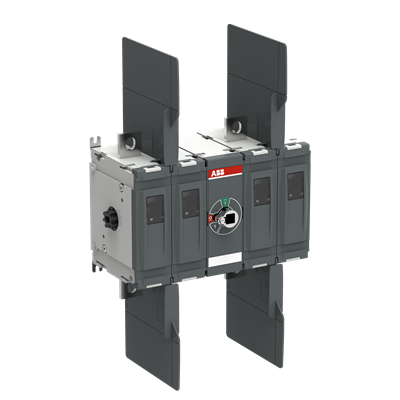

ABB DC SWITCH DISCONNECTOR 400A 1500V DC 4P CENTRE MECHANISM OTDC400FV22

Product Code: OTDC400FV22

The DC Switch Disconnector is a 4P (four pole) device designed for use with a voltage of 1500VDC. It has a rated operational current of 400A, specifically for DC-21B and DC-PV2 applications. This switch disconnector features two circuits and utilizes a mechanism between the poles. It offers higher performance with minimal power losses and a compact size.

Technical Specifications

Rated Operational Current DC-21B 1500V (A) 400
Rated Operational Current DC-PV2 1500V (A) 400
Brand ABB
No. of Circuits 2
No. of Poles 4
Rated Impulse Withstand Voltage (kV) 12
Rated Short-time Withstand Current - Icw (kA/1s) 10
Standards and Approvals IEC 60947

Documents
