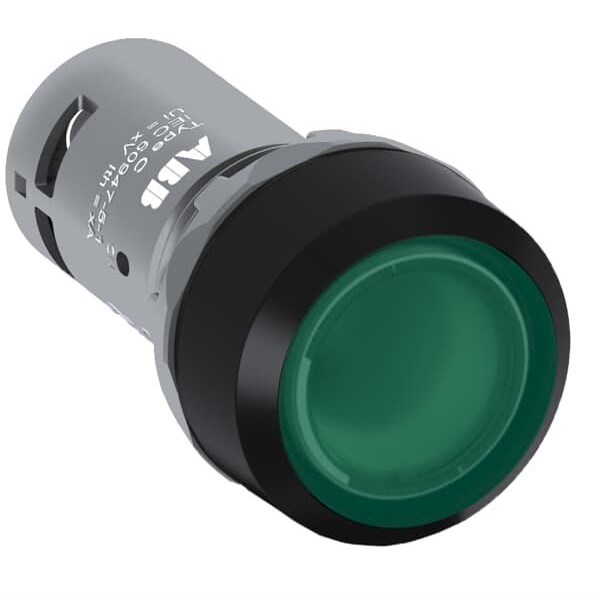

<p>When it comes to selecting the right component for your industrial or commercial application, understanding the technical details is crucial. This particular product offers a robust set of features that cater to a wide range of operational needs. </p><p>Designed for efficiency, this device operates at a rated voltage of 230 VAC/DC and supports both 50 Hz and 60 Hz frequencies. The illumination feature, powered by an LED lamp in green, ensures clear visibility even in low-light conditions—an essential aspect for safety and operational accuracy.</p><p>The dimensions are compact with a width and height of 30 mm each, and a depth of 55 mm. Despite its small size, it boasts an impressive degree of protection: IP66, IP67, and IP69K on the front side ensure resilience against dust ingress and high-pressure water jets. Meanwhile, the terminal is rated at IP20.</p><p>Built to withstand demanding environments, this product functions effectively across various temperatures from -25&#176;C up to 70&#176;C during operation; it can also be stored safely between -40&#176;C to 85&#176;C. The screw terminal type allows easy installation with a tightening torque of 1 N-m.</p><p>This unit complies with several standards including EN IEC 60947-1 and EN IEC 60947-5-5 among others—assuring quality and reliability in performance. It is part of the CP series known for durability with mechanical life expectancy reaching up to half a million operations.</p><p>The contact configuration includes one normally closed (1NC) setup which suits applications requiring maintained functions. Rated insulation voltage stands at 300 V while its impulse withstand voltage reaches up to an impressive 6 kV.</p><p>For those concerned about connection flexibility, this device accommodates various wire types: flexible cables with ferrules or insulated ferrules ranging from 0.5 sq-mm up to 1.5 sq-mm as well as solid wires within similar specifications—all ensuring secure connectivity through its screw-type connection system.</p><p>Rated thermal current capacity sits comfortably at five amps making it suitable across numerous circuit designs without compromising safety or effectiveness over time due largely thanks not only due these attributes but also because bezel material composed entirely out plastic keeps weight down just around twenty-five grams total!</p><p>Finally fitting into multiple enclosure categories such as NEMA types one twelve thirteen three R four plus four X means whether indoors outdoors harsh weather conditions alike rest assured knowing equipment remains protected ready perform day after day!</p>
