Changeover Switches

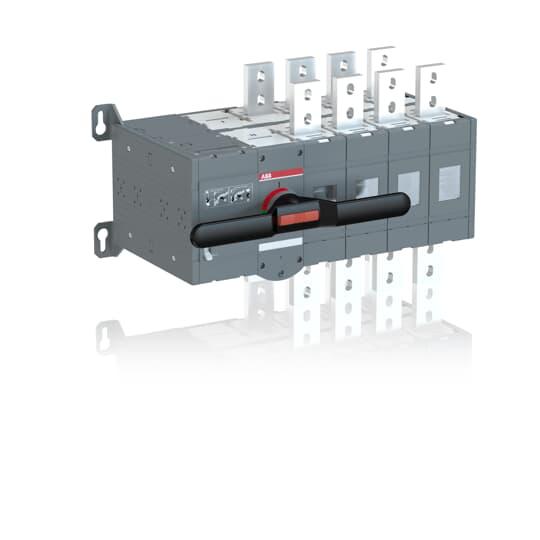

ABB OTM1600E4CM230C MOTORIZED C/O SWITCH OTM1600E4CM230C

Product Code: OTM1600E4CM230C

Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Include a storage clip for the handle and spare fuses.

Technical Specifications

Control Element Colour Black
Fourth Pole Type Switched-simultaneous Function
Integrated Motor Drive Yes
Interlockable Yes
No. of Switches 1
Transition Type Open
Brand ABB
Degree of Protection IP20
Dimensions (mm) 587W x 372H x 372D
Handle Colour black
Maximum Operational Voltage AC (V) 1000
Mounting Type Front Mount 4-hole
NEMA Degree of Protection 1
No. of Poles 4
Power Loss (W) 48
Rated Operational Current AC-21A 415V (A) 1600
Rated Operational Current AC-22A 415V (A) 1600
Rated Operational Current AC-22A 500V (A) 1600
Rated Operational Current AC-23A 380-415V (A) 1600
Rated Operational Current AC-23A 415V (A) 1600
Rated Operational Current AC-23A 500V (A) 1600
Rated Operational Power AC-23A 380-415V (kW) 710
Rated Operational Voltage (V) 1000
Rated Short-Time Withstand Current - Icw (kA) 50
Rated Short-time Withstand Current - Icw (kA/1s) 50
Suitable For Distribution Board Installation
Type Main Switch
