Control Element Colour	Black
Interlockable	Yes
No. of Switches	1
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Transition Type	Open
Brand	ABB
Cable Cross Section (mm²)	1.5 - 35
Conventional Free-Air Thermal Current - Ith (A)	63
Degree of Protection	IP20
Dimensions (mm)	140W x 92H x 85D
Indication	I-O-II
Maximum Operational Voltage AC (V)	750
Mode of Operation	Front
Mounting Type	Front Mount 4-hole
NEMA Degree of Protection	1
No. of Poles	4
Pollution Degree	3
Power Loss (W)	2.8
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	750
Rated Operational Current AC-21A 415V (A)	63
Rated Operational Current AC-22A 415V (A)	63
Rated Operational Current AC-23A 380-415V (A)	45
Rated Operational Current AC-23A 415V (A)	63
Rated Operational Power AC-23A 380-415V (kW)	22
Rated Operational Power AC-23A 415V (kW)	22
Rated Operational Voltage (V)	750
Rated Operational Voltage AC (V)	415
Rated Short-Time Withstand Current - Icw (kA)	1
Suitable For	Distribution Board Installation
Terminal Type	Screw
Type	Main Switch
Weight (kg)	0.7

Changeover Switches

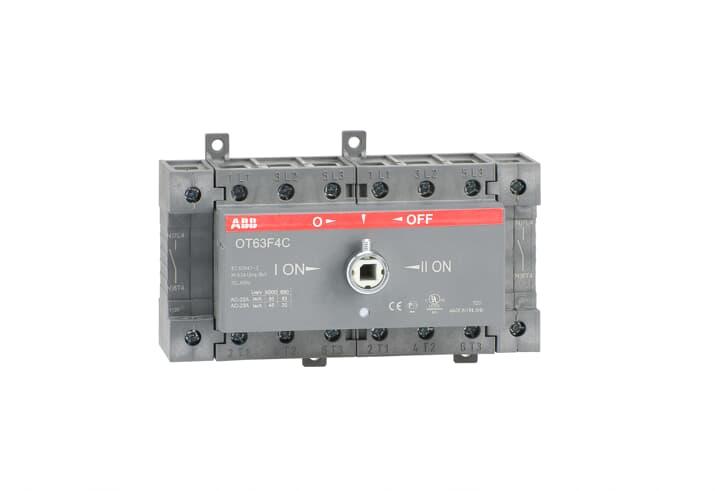

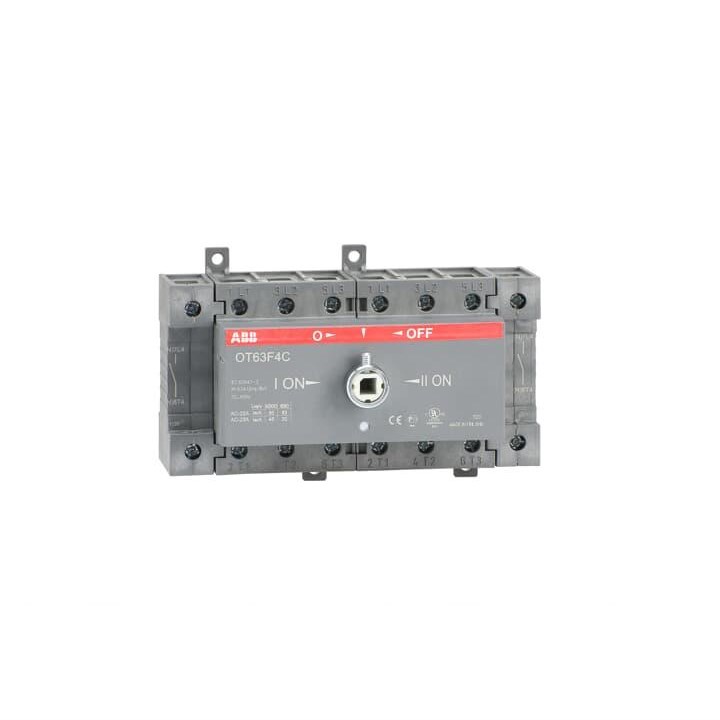

ABB OT63F4C CHANGE-OVER SWITCH OT63F4C
