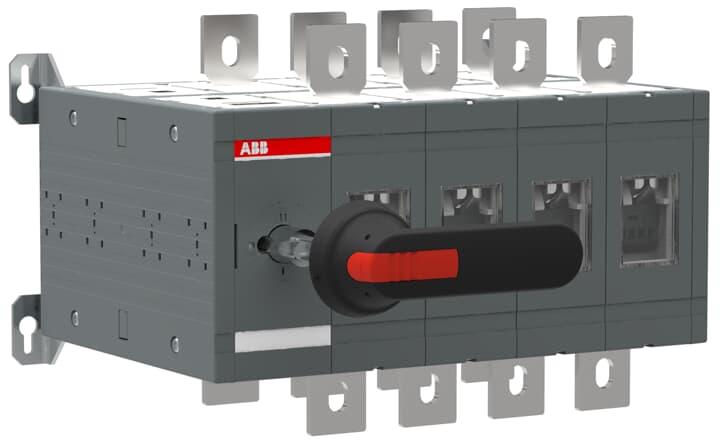

ABB OT630E04CP CHANGE-OVER SWITCH OT630E04CP

Product Code: OT630E04CP

630A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.

Technical Specifications

Handle Type Pistol
Control Element Colour Black
Interlockable Yes
Suitable For Distribution Board Installation
Brand ABB
Type Main Switch
Included Handle, Shaft
Mounting Type Front Mount 4-hole
Conventional Free-Air Thermal Current - Ith (A) 630
Indication I-O-II
Maximum Operational Voltage AC (V) 1000
Mode of Operation Front
No. of Poles 4
No. of Switches 1
Padlockable Padlockable in O-position
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Power Loss (W) 25
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-21A 415V (A) 630
Rated Operational Current AC-22A 415V (A) 630
Rated Operational Current AC-23A 380-415V (A) 630
Rated Operational Current AC-23A 415V (A) 630
Rated Operational Power AC-23A 380-415V (kW) 355
Rated Operational Power AC-23A 415V (kW) 355
Rated Operational Voltage (V) 1000
Rated Operational Voltage AC (V) 415
Rated Short-Time Withstand Current - Icw (kA) 20
Terminal Type Bolt
Dimensions (mm) 376W x 250H x 280D
Transition Type Open
Weight (kg) 21
Degree of Protection IP20
Pollution Degree 3
NEMA Degree of Protection 1
