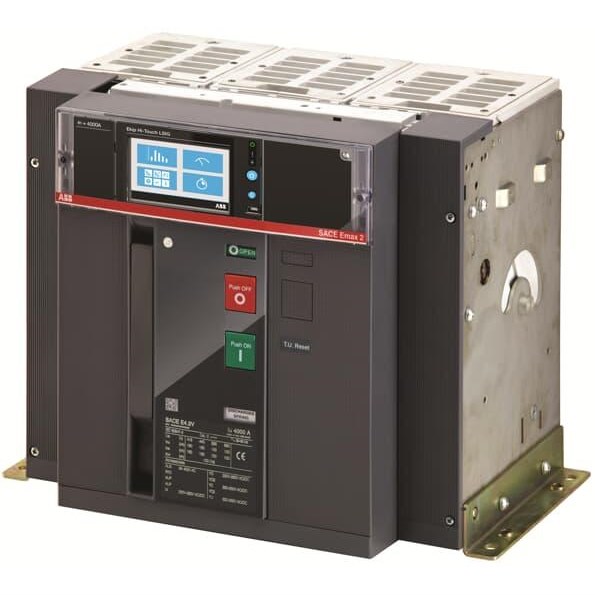

ABB 1SDA071146R1 ACB 3200A 3-P 66kA F Version Ekip Touch LSIG

Product Code: 1SDA071146R1

  • Automatic ACB with 3200 A rated current
  • Ekip Touch LSIG trip unit for precision control
  • High breaking capacity of 66 kA
  • IP30 protection rating ensures safety
  • Compact design: 384mm x 371mm x 270mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Air Circuit Breaker
Brand ABB
Breaking Capacity 66 kA
Component Type Fixed
Degree of Protection IP30
Depth 270 mm
Height 371 mm
Number of Poles 3
Power Loss 425 W
Rated Current 3200 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC 309
Terminal Type Bolt
Tightening Torque 70 N-m
Trip Unit Ekip Touch LSIG
Version Fixed
Weight 56 kg
Width 384 mm

Description

If you're in the market for a reliable and robust Automatic Air Circuit Breaker (ACB) for your industrial or commercial applications, this model could be a fitting choice. Designed with precision and built to meet demanding electrical requirements, this ACB ensures safety and efficiency in power distribution systems.

With a rated current of 3200 A, it is well-suited for heavy-duty operations that require consistent performance. The unit's rated impulse withstand voltage stands at 12 kV, while its rated insulation voltage is 1000 V, ensuring high-level protection against overvoltages and providing reliable insulation under various conditions.

Operating at a rated voltage of 690 VAC, this ACB is equipped with an EL-type release mechanism. It features the advanced Ekip Touch LSIG trip unit which provides comprehensive protection through its Long-time, Short-time, Instantaneous, and Ground fault settings. This makes it adaptable to different operational needs while maintaining optimal safety standards.

The product boasts a breaking capacity of 66 kA which indicates its ability to interrupt fault currents effectively without compromising system integrity. With an IP30 degree of protection, it offers sufficient safeguarding against solid objects larger than 2.5 mm.

Designed with practicality in mind, this ACB comes with bolt terminal types that facilitate secure connections and ease of installation. The recommended tightening torque is set at 70 N-m ensuring firm attachment during setup.

In terms of dimensions, the breaker measures 384 mm in width, stands at a height of 371 mm and has a depth of 270 mm making it compact enough for integration into existing panel systems without significant modifications. Despite its size-efficient design, it weighs in at a substantial but manageable weight of 56 kg.

Power loss is noted at 425 W which reflects its energy efficiency during operation—a critical factor when considering long-term usage costs and sustainability goals.

This Automatic ACB complies with IEC standards as per IEC 309 approvals confirming its adherence to international quality benchmarks—an assurance for users seeking dependable performance backed by recognized certifications.

Overall, whether you are upgrading existing infrastructure or installing new systems altogether—this Automatic ACB presents itself as an effective solution balancing technical prowess with practical application benefits suitable for diverse environments across Australia’s industrial landscape.
