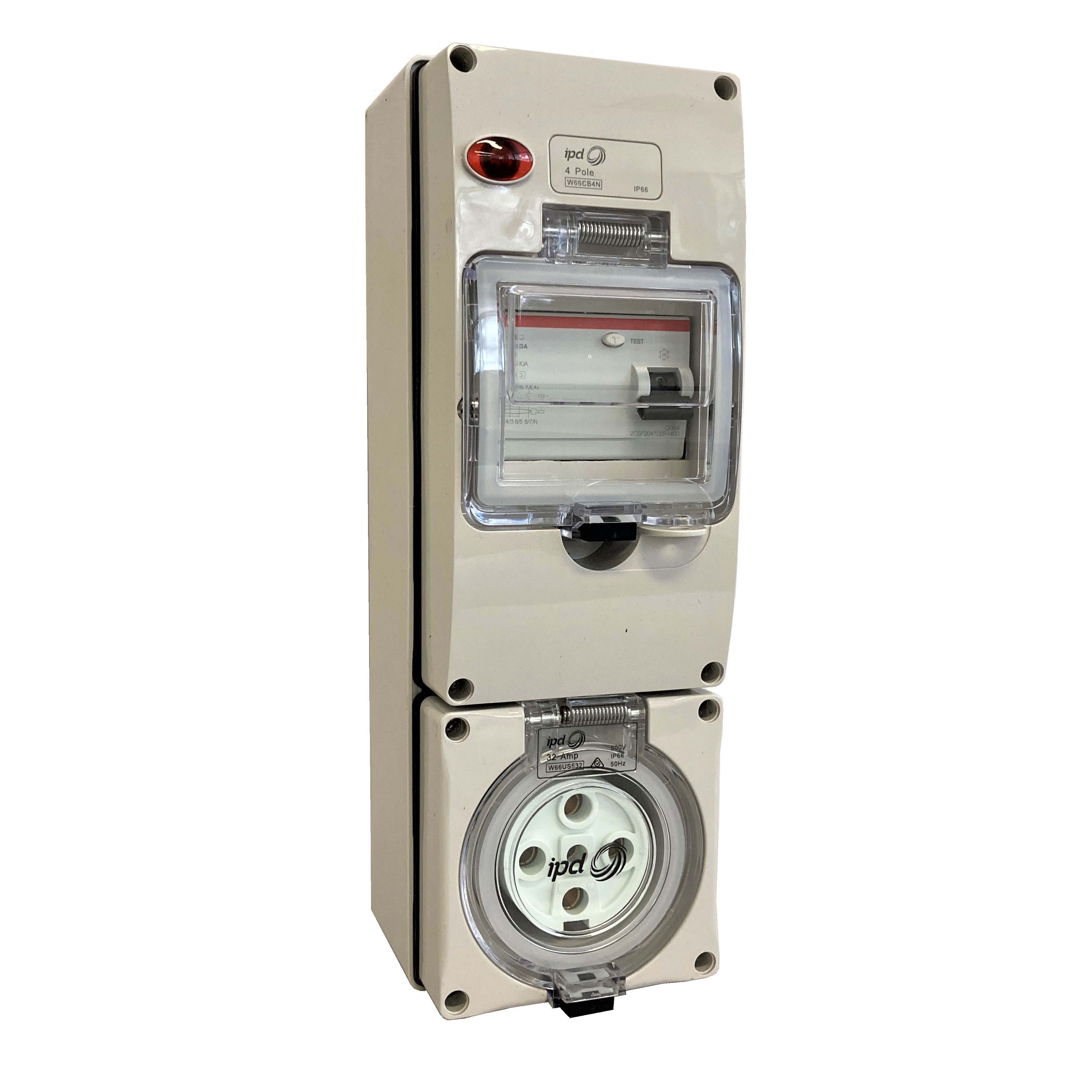

IPD W66US520RCA Unswitched Socket 5 Round-Pin 3-Ph 20A 415VAC/DC TypeA IP66 Polycarbonate

Product Code: W66US520RCA

  • 20A, 415V AC/DC rated outlet
  • IP66 for robust protection
  • Durable polycarbonate material
  • Includes back box for convenience
  • Type A residual current protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Unswitched Socket
Brand IPD
Back Box Included Yes
Cable Cross Section 6 sq-mm
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries (1) M32, (2) M25
Material Polycarbonate
Number of Pins 5
Phase 3
Pin Type Round
Rated Current 20 A
Rated Voltage 415 VAC/VDC
Residual Current Type Type A
Standards and Approvals IP66

Description

<p>When selecting an industrial-grade outlet, you need reliability and durability to ensure seamless operation in demanding environments. This 20 A outlet is designed for both AC and DC applications with a rated voltage of 415 volts, making it suitable for a variety of industrial and commercial settings.</p><p>Crafted from robust polycarbonate material, this outlet offers excellent resistance to impact and environmental factors. Its IP66 degree of protection ensures that it remains dust-tight and protected against powerful water jets, making it ideal for outdoor installations or harsh indoor conditions where moisture or dust could be an issue.</p><p>The outlet accommodates a cable cross-section of up to 6 square millimeters, providing flexibility in terms of wiring options. It also includes multiple gland entries: one M32 entry and two M25 entries. This allows for versatile installation configurations, catering to different cabling requirements while ensuring secure connections.</p><p>Included with the product is a back box, simplifying the installation process by providing all necessary components in one package. The residual current device (RCD) type is Type A, which means it&amp;#39;s capable of detecting both AC faults and pulsating DC residual currents—an essential feature for enhancing safety by reducing the risk of electrical shock.</p><p>The pin type used here is round, which typically aligns with international standards for heavy-duty electrical outlets. This design choice ensures compatibility with various plug types commonly found in industrial equipment.</p><p>In summary, this outlet provides a comprehensive solution for those seeking reliability under challenging conditions. Its high current rating combined with robust construction makes it well-suited to support demanding electrical loads while maintaining safety through its advanced RCD capabilities. Whether you&amp;#39;re upgrading existing infrastructure or implementing new systems, this outlet offers the flexibility and resilience required in today&amp;#39;s fast-paced industrial environments.</p>
