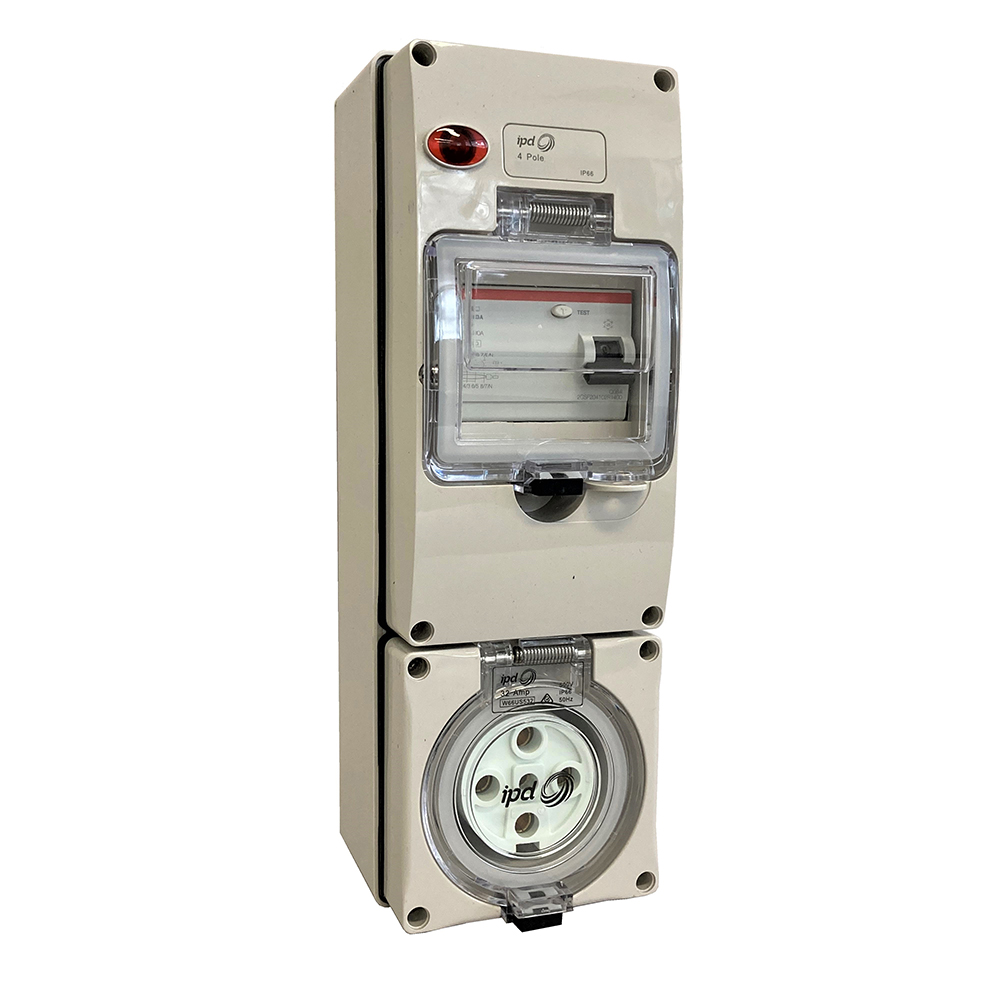

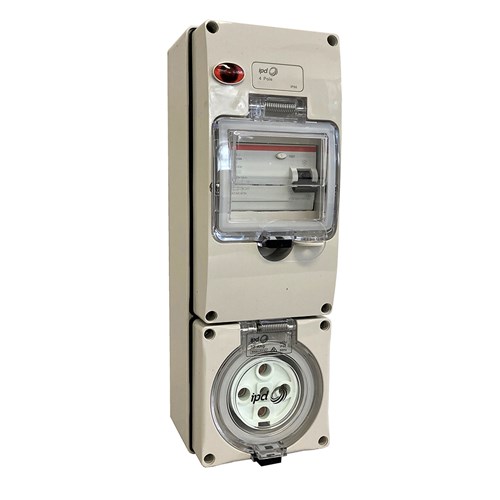

IPD W66US410RCA Unswitched Socket 4 Round-Pin 3-Ph 10A 415VAC/DC TypeA IP66 Polycarbonate

Product Code: W66US410RCA

  • 10A, 415V AC/DC rated outlet
  • IP66 weatherproof protection
  • Durable polycarbonate material
  • Includes back box for easy install
  • Multiple gland entries: M32, M25
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Unswitched Socket
Brand IPD
Back Box Included Yes
Cable Cross Section 6 sq-mm
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries (1) M32, (2) M25
Material Polycarbonate
Number of Pins 4
Phase 3
Pin Type Round
Rated Current 10 A
Rated Voltage 415 VAC/VDC
Residual Current Type Type A
Standards and Approvals IP66

Description

<p>When it comes to choosing an electrical outlet for industrial and commercial applications, reliability and durability are paramount. This particular outlet is designed with these critical factors in mind, offering a robust solution for various demanding environments.</p><p>Rated at 10 A, this outlet operates efficiently on both AC and DC circuits up to 415 V. Such versatility makes it suitable for a wide range of electrical systems, ensuring compatibility with your existing infrastructure. The degree of protection is rated at IP66, indicating that the outlet is dust-tight and protected against powerful water jets—ideal for outdoor or harsh indoor conditions where exposure to elements is a concern.</p><p>Constructed from polycarbonate material, this outlet provides excellent impact resistance and longevity. Polycarbonate&amp;#39;s strength ensures that the unit can withstand physical stress without compromising its structural integrity or performance over time.</p><p>The design includes multiple gland entries: one M32 entry and two M25 entries. These options facilitate flexible cable management solutions, allowing you to accommodate varying cable sizes up to a cross-section of 6 sq-mm easily. This feature simplifies installation while maintaining secure connections essential in industrial settings.</p><p>A back box is included with the product, adding convenience by reducing additional purchases or modifications during setup. It streamlines the installation process further by providing all necessary components in one package.</p><p>Safety remains a top priority with the inclusion of Type A residual current protection. This feature enhances safety by detecting alternating currents (AC) as well as pulsating direct currents (DC), providing comprehensive protection against potential electrical faults.</p><p>The pin type used in this outlet is round—a common choice that supports reliable connectivity across numerous equipment types found in commercial setups.</p><p>In summary, this IP66-rated polycarbonate outlet stands out as a dependable choice for those seeking robustness and adaptability in their electrical installations. With its thoughtful design considerations like multiple gland entries and built-in safety features such as Type A residual current detection, it meets high standards required by professionals working under challenging conditions while ensuring ease of use during implementation phases.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
