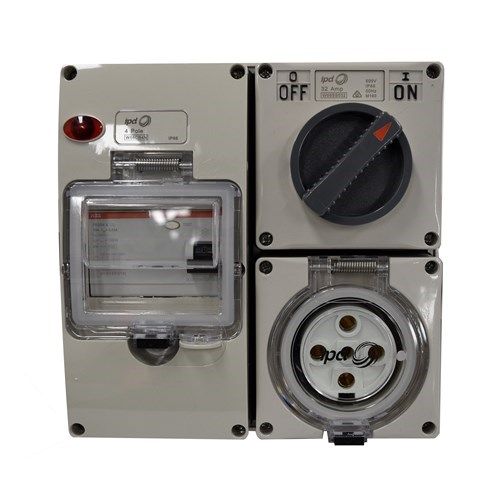

IPD W66SS420RCA Switched Outlet 4 Round-Pin 3-Ph 20A 415VAC/DC TypeA IP66 Polycarbonate

Product Code: W66SS420RCA

  • 20A, 415V AC/DC rated outlet
  • IP66 weather-resistant design
  • Durable polycarbonate construction
  • Includes back box for easy install
  • Supports Type A residual current
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Switched Outlet
Brand IPD
Back Box Included Yes
Cable Cross Section 6 sq-mm
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries (2) M32, (2) M25
Material Polycarbonate
Number of Pins 4
Phase 3
Pin Type Round
Rated Current 20 A
Rated Voltage 415 VAC/VDC
Residual Current Type Type A
Standards and Approvals IP66

Description

<p>For those working in industrial and commercial settings, selecting the right electrical outlet is crucial to ensuring safety and efficiency. This 20 A outlet, designed for use with both AC and DC systems up to 415 V, offers a robust solution that meets a variety of technical requirements.</p><p>Constructed from durable polycarbonate material, this outlet is engineered to withstand demanding environments. Its high degree of protection, rated at IP66, ensures that it is resistant to dust ingress and powerful water jets from any direction. This makes it an ideal choice for outdoor installations or locations where exposure to harsh conditions is expected.</p><p>The design includes a back box for ease of installation, facilitating quick setup without compromising on reliability. With its cable cross section capability of up to 6 sq-mm, it can accommodate substantial wiring needs while maintaining secure connections.</p><p>This model features two M32 and two M25 gland entries, providing flexibility in cable management and allowing for various configurations based on your specific application requirements. The inclusion of these multiple gland entry sizes enhances versatility during installation.</p><p>Safety is further enhanced by the inclusion of Type A residual current protection. This feature helps detect alternating current (AC) leakage currents as well as pulsating direct currents (DC), adding an extra layer of protection against electrical faults.</p><p>The round pin type design complements its robust construction by ensuring firm contact points within the socket mechanism. This contributes not only to reliable power delivery but also reduces wear over time due to consistent engagement between pins and socket contacts.</p><p>Overall, this outlet stands out as a reliable component in any electrical system requiring mid-range power distribution capabilities combined with advanced protective features. Whether you&amp;#39;re upgrading existing infrastructure or planning new installations, this product delivers dependable performance tailored for industrial-grade applications.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
