W66 Industrial IP66 Switchgear

IPD 30MA RCD TYPE A PROTECTED SWITCHED OUTLET KIT 3 PHASE 4 PINS 10A 415V, IP66 W66SS410RCA

Product Code: W66SS410RCA

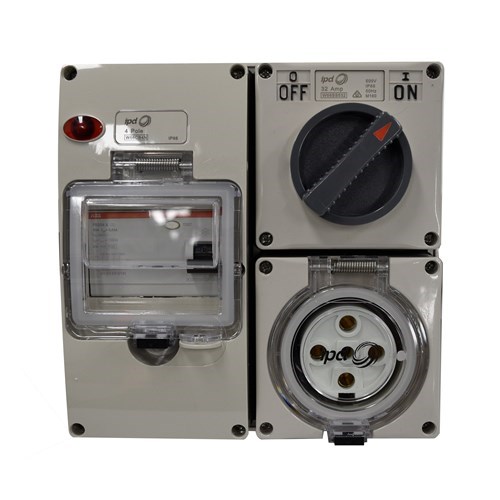

This is a three-phase Type A RCD protected switched outlet kit with 4 pins. It has an IP66 rating and a 4M base. The current rating is 10A, and the voltage rating is 415V.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries 2 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 10
Rated Residual Current (mA) 30
Rated Voltage AC/DC (V) 415
Standards and Approvals IP66
Type of Residual Current Type A
