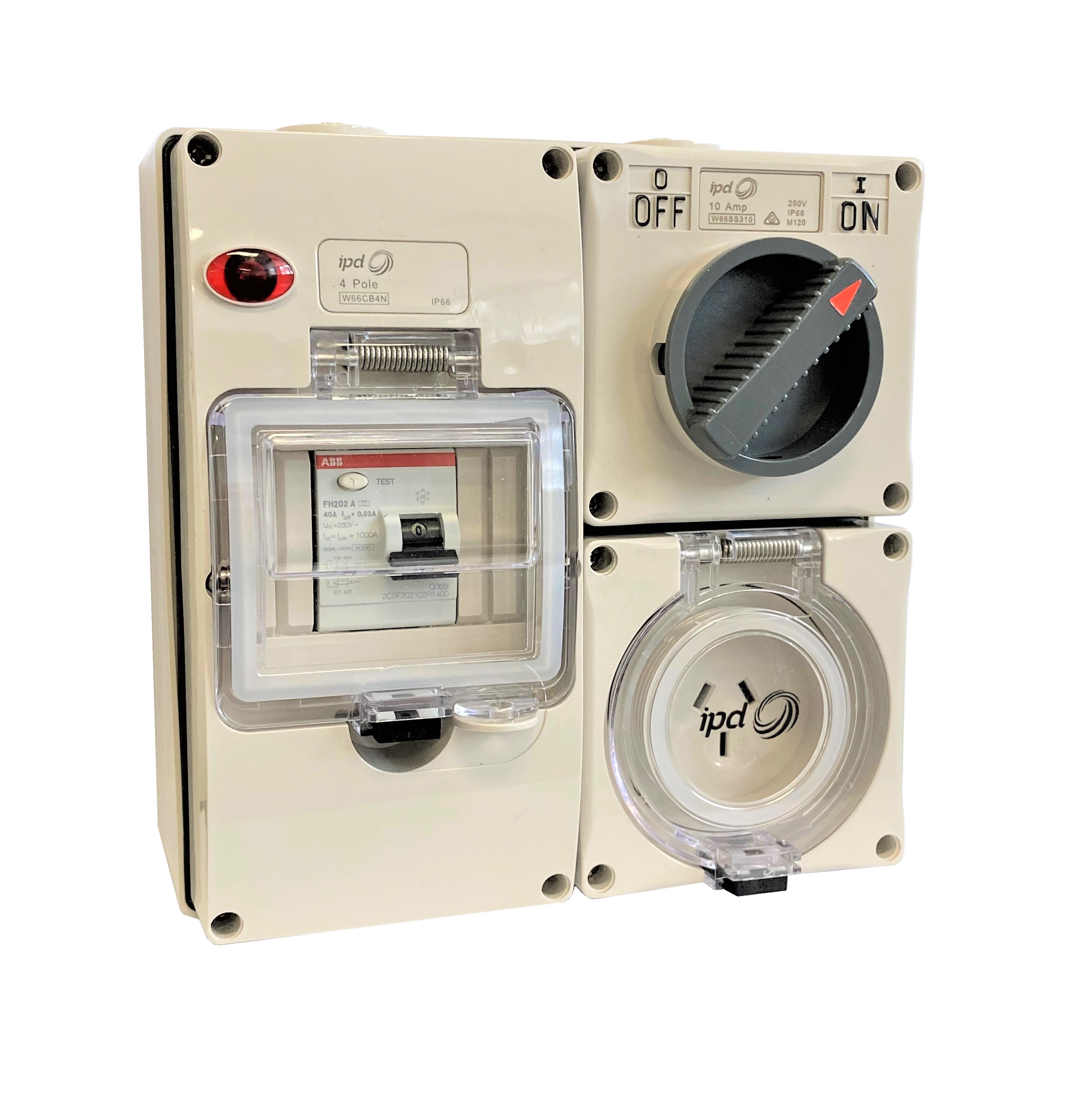

IPD W66SS310RCA Switched Outlet 3 Flat-Pin 1-Ph 10A 240VAC/DC TypeA IP66 Polycarbonate

Product Code: W66SS310RCA

  • 10A, 240V AC/DC rated outlet
  • IP66 protection for harsh conditions
  • Durable polycarbonate construction
  • Includes (2) M32 & (2) M25 entries
  • Comes with back box
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Switched Outlet
Brand IPD
Back Box Included Yes
Cable Cross Section 6 sq-mm
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries (2) M32, (2) M25
Material Polycarbonate
Number of Pins 3
Phase 1
Pin Type Flat
Rated Current 10 A
Rated Voltage 240 VAC/VDC
Residual Current Type Type A
Standards and Approvals IP66

Description

<p>When selecting an industrial-grade outlet, it&amp;#39;s essential to consider factors such as durability, safety, and versatility. This particular outlet is designed to meet the rigorous demands of both commercial and industrial environments. With a rated current of 10 A and a voltage capacity of 240 VAC/VDC, it offers reliable performance for various applications.</p><p>One standout feature of this outlet is its robust IP66 degree of protection. This rating ensures that the unit is dust-tight and can withstand powerful water jets from any direction, making it suitable for harsh outdoor conditions or areas prone to moisture exposure. Such resilience is crucial in maintaining operational integrity and safety over time.</p><p>The material construction further enhances its durability; made from polycarbonate, this outlet combines strength with lightweight properties. Polycarbonate is known for its resistance to impact and UV radiation, ensuring longevity even when exposed to challenging environmental conditions.</p><p>Installation flexibility is another advantage offered by this outlet due to its multiple gland entries—specifically two M32 and two M25 options. These allow for diverse cable management solutions while accommodating cables with cross sections up to 6 sq-mm. The inclusion of a back box simplifies installation processes by providing a ready-to-use housing that supports secure mounting.</p><p>Safety considerations are paramount in any electrical setup, which is why the inclusion of Type A residual current protection cannot be overlooked. This feature provides enhanced protection against electric shock hazards by detecting both AC fault currents and pulsating DC fault currents—a critical aspect in safeguarding personnel and equipment alike.</p><p>Additionally, the flat pin type design aligns with standard Australian configurations, ensuring compatibility with existing infrastructure without requiring additional adapters or modifications.</p><p>Overall, whether you&amp;#39;re upgrading existing systems or implementing new installations across commercial or industrial sites, this outlet presents itself as a reliable choice offering robust protection features alongside practical installation benefits—all wrapped up in a durable polycarbonate shell that stands up well under demanding conditions.</p>
