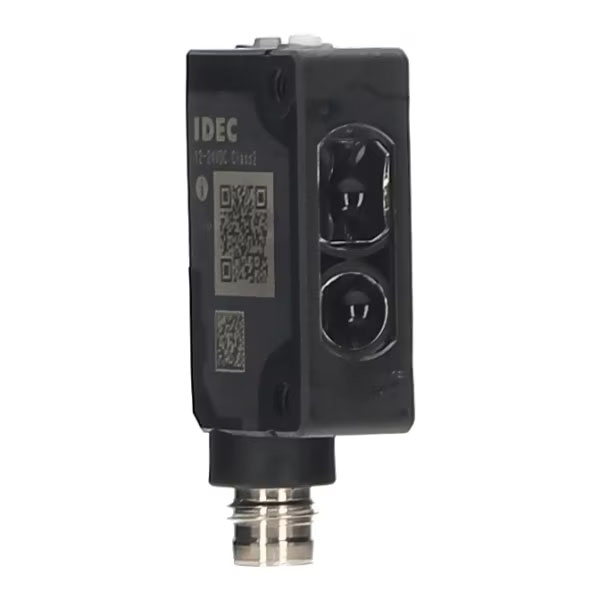

IDEC SA2E-DN3LC Didduse-Reflective Miniature Photoelectric Sensor 12-24VDC 1m Sensing M8 NPN-Output

Product Code: SA2E-DN3LC

  • 1m sensing range for precise detection
  • Operates on 12-24 VDC, 20 mA current
  • NPN output with M8 connector
  • Durable PBT case, PMMA lens
  • IP67 rated for robust protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Didduse-Reflective Miniature Photoelectric Sensor
Brand IDEC
Connection Type M8 Connector
Degree of Protection IP67
Emitting Element Infrared LED
Housing Material PBT Case, Polymethyl Methacrylate Lens
Humidity 35-85%
Material Case: Polybutylene terephthalate (PBT), Lens: Polymethyl methacrylate (PMMA)
Operation Indicator Light-ON, Dark-ON
Operational Temperature -30 to 55 deg C
Output Type NPN
Rated Current 20 mA
Rated Voltage 12-24 VDC
Response Time 0.5 ms
Sensing Range 1 m
Shock Resistance 1000 ms
Standards and Approvals IEC 60529

Description

<p>When it comes to reliable and precise detection in industrial and commercial environments, this Photoelectric Sensor stands out as a dependable choice. Designed with a sensing range of up to 1 meter, it provides accurate performance for various applications requiring object detection within this distance.</p><p>Operating efficiently on a voltage range of 12-24 VDC, the sensor consumes only 20 mA, ensuring energy-efficient operation. Its NPN output type offers straightforward integration into existing systems, making it an ideal component for those seeking seamless compatibility.</p><p>The sensor’s robust construction features a PBT case coupled with a Polymethyl Methacrylate lens, offering durability even in demanding conditions. It is engineered to withstand humidity levels between 35% and 85%, ensuring consistent performance across varying environmental conditions.</p><p>Rated at IP67 according to IEC 60529 standards, this device is dust-tight and protected against temporary immersion in water. This degree of protection makes it suitable for use in harsh environments where exposure to moisture or particulates is common.</p><p>Designed for versatility, the sensor operates effectively within temperatures ranging from -30&amp;#176;C to 55&amp;#176;C. This wide operational temperature range ensures reliability whether you&amp;#39;re dealing with extreme cold or moderate heat.</p><p>For enhanced stability during operation, the sensor boasts shock resistance up to 1000 ms. Additionally, its rapid response time of just 0.5 ms ensures that your system can react swiftly when detecting objects—critical in high-speed automation processes.</p><p>The dual-mode operation indicator allows users flexibility by providing both Light-ON and Dark-ON options depending on their specific application needs. This adaptability simplifies installation and configuration while enhancing user experience.</p><p>Equipped with an infrared LED as its emitting element, the sensor delivers dependable performance under various lighting conditions without interference from visible light sources—a crucial feature for maintaining accuracy across diverse settings.</p><p>Connection is facilitated through an M8 connector which supports easy integration into existing setups without complex wiring requirements or additional adapters needed—ideal for streamlined deployment in busy industrial environments.</p><p>This photoelectric sensor combines precision engineering with practical features designed specifically for professionals who demand reliability and efficiency from their equipment.</p>
