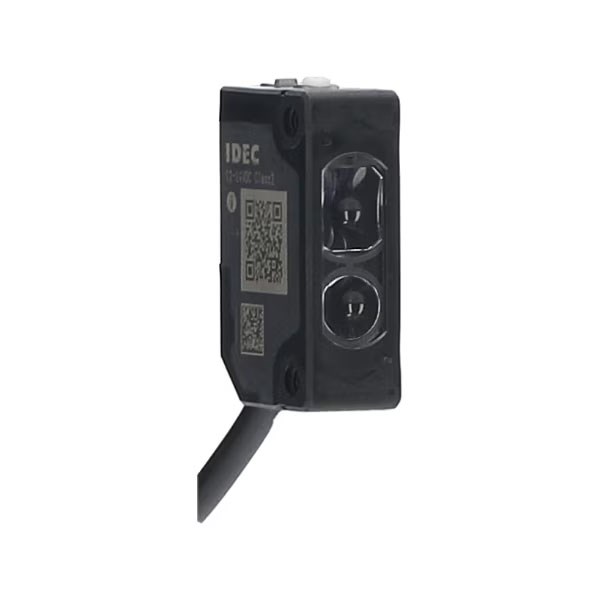

IDEC SA2E-BN3-2M Miniature Photoelectric Sensor 12-24VDC 10-350mm Sensing 2m L Cable NPN-Output

Product Code: SA2E-BN3-2M

  • Sensing range: 10-350 mm
  • Voltage: 12-24 VDC, Current: 20 mA
  • Output type: NPN with cable connection
  • Durable PBT case, IP67 protection
  • Fast response time of 0.5 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Photoelectric Sensor
Brand IDEC
Cable Length 2 m
Connection Type Cable
Degree of Protection IP67
Emitting Element Red LED
Housing Material PBT Case, Polymethyl Methacrylate Lens
Humidity 35-85%
Material Case: Polybutylene terephthalate (PBT), Lens: Polymethyl methacrylate (PMMA)
Operation Indicator Light-ON, Dark-ON
Operational Temperature -30 to 55 deg C
Output Type NPN
Rated Current 20 mA
Rated Voltage 12-24 VDC
Response Time 0.5 ms
Sensing Range 10-350 mm
Shock Resistance 1000 ms
Standards and Approvals IEC 60529

Description

<p>When selecting a reliable photoelectric sensor for industrial and commercial applications, the right choice can make all the difference in efficiency and performance. This particular photoelectric sensor offers a robust feature set designed to meet various technical requirements with precision and reliability.</p><p>With a sensing range of 10-350 mm, this sensor is versatile enough for numerous applications, whether you need close-range detection or slightly extended coverage. It operates efficiently within a rated voltage of 12-24 VDC and draws only 20 mA of current, ensuring energy-efficient operation suitable for most setups.</p><p>The output type is NPN, which is compatible with many standard control systems used in industrial automation. Its connection type is via cable, providing straightforward integration into existing systems while maintaining secure data transmission.</p><p>Constructed from durable materials such as PBT for the case and polymethyl methacrylate for the lens, this sensor promises longevity even in demanding environments. The housing ensures protection against dust and water ingress with an IP67 rating according to IEC 60529 standards—a crucial factor when operating in harsh conditions.</p><p>Operational temperature ranges from -30 to 55 degrees Celsius allow this device to function reliably across varied climates without compromising performance. The humidity tolerance between 35% to 85% further adds to its adaptability in different environmental settings.</p><p>For those concerned about durability under physical stress, it boasts shock resistance up to 1000 ms. This resilience makes it ideal for use in areas where mechanical impacts are possible.</p><p>The response time of just 0.5 ms ensures quick detection capabilities—essential for high-speed operations where timing is critical. Additionally, the operation indicator provides both Light-ON and Dark-ON modes facilitated by a red LED emitting element, allowing users flexibility based on their specific needs.</p><p>Installation convenience comes with a standard cable length of 2 meters offering ample reach without unnecessary clutter or complexity during setup.</p><p>This photoelectric sensor combines essential features like rugged construction, efficient power usage, fast response time, and flexible operational modes making it an excellent choice for professionals seeking dependable performance tailored to their technical demands while adhering strictly to industry standards like IEC 60529.</p>
