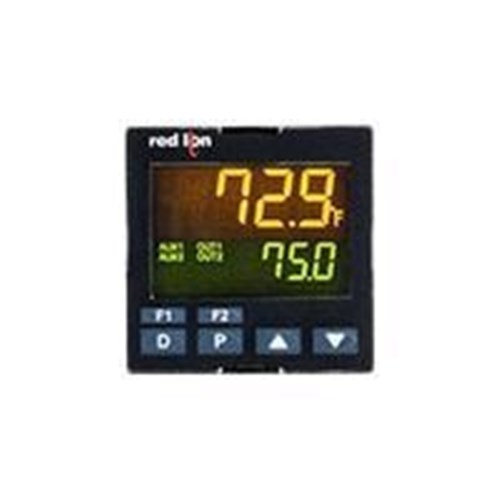

RED LION PID CONTROLLER 1/4 DIN OUTPUT 4-20mA PXU31AE0

Optimize your industrial control systems with the Red Lion PXU series PID Controller, available in versatile 1/4 DIN, 1/8 DIN, and 1/16 DIN sizes. This controller ensures reliable power connectivity with both AC (100 to 240 VAC) and DC (24 VDC) options. Experience precision with its universal input capabilities, offering temperature/RTD indication accuracy of ±(0.3% of span + 1°C) at 25°C. It supports a wide range of thermocouple inputs including Types T, E, J, K, R, S, B, N, L, U, and TXK as well as RTD inputs for both 2 or 3 wire configurations with an excitation current of 180 µA. For process monitoring and control applications, it accepts inputs from 0-5 or 0-10 VDC to 0-20 or 4-20 mA and even up to a range of 0-50 mV. An optional CT input is also available for single-phase AC current measurements up to 25 mA. Remote input compatibility extends to ranges of 0-10 VDC and both standard and enhanced current loops (0-20 mA or 4-20 mA). Communication is streamlined through an RS-485 serial interface. Output functions are diverse with time proportioning or DC analog options alongside dual relay alarm outputs that can be configured as Form A or C contacts with a rating of up to 3 A @250 VAC. The unit's LCD features negative image transmissive technology complemented by backlighting for clear visibility under various lighting conditions. Crafted by Red Lion a leader in automation systems the PXU series stands out in the realm of industrial controllers and RTUs for its adaptability and precision in process management tasks.
