Product Code: PAXT0010

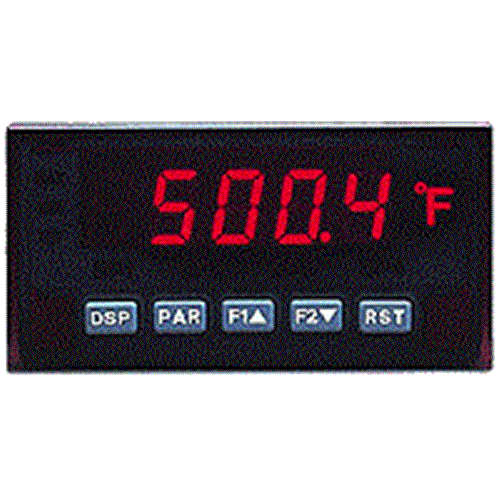

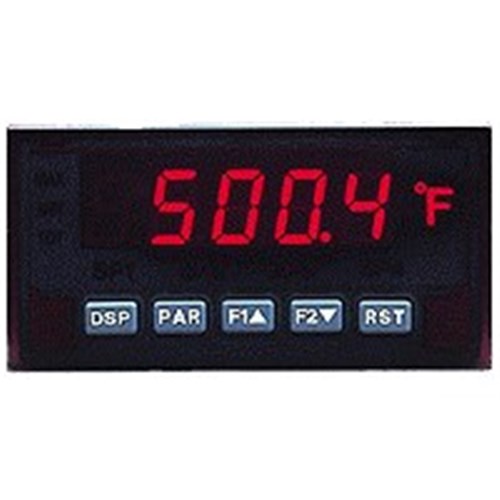

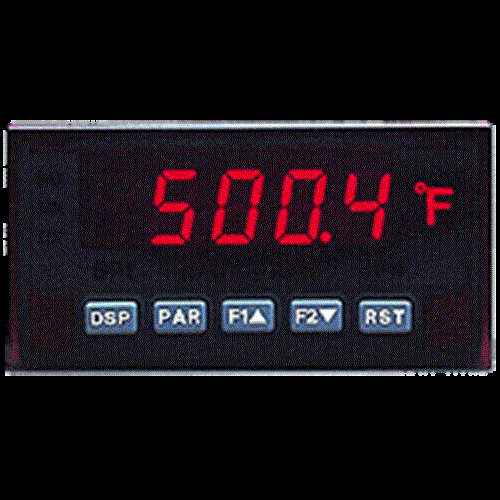

This Thermocouple & RTD Panel Meter is designed to meet the needs of engineers. It features a compact 1/8 DIN size (50 mm x 97 mm) and a clear 5-digit LED display with a 0.56" (14 mm) size that is easy to read even in sunlight. The meter conforms to ITS-90 standards, ensuring accurate temperature measurements in either Fahrenheit or Celsius units. With its backlight and field upgradeable option cards, this meter offers flexibility and convenience. It operates on an input power range of 11 to 36 VDC (with a nominal voltage of 24 VDC) and has a NEMX 4X/IP65 rating for durability and protection against dust and water.

DIN Size	1/8
Measurement Range	Thermocouple T, E, J, K, R, S, B, N, C, RTD Pt385, Pt3919, Ni672, Cu427 -10 to 65mV
Measurement Type	Temperature
Number of Display Digits	5 Digits
Brand	RED LION
Degree of Protection	IP65 (Face), IP20 (Rear)
Dimensions (mm)	50 x 97
Display Screen Type	Red Backlight LED
Mounting Type	Panel
Rated Supply Voltage AC (V)	24
Rated Supply Voltage DC (V)	11 - 36
Series	PAX
Standards and Approvals	CE, EN 61010-1, EN 61010-2-030, UL, RoHS

Process Meters & Controllers

RED LION PAX TEMPERATURE METER, RED DISPLAY, DC POWERED PAXT0010

Product Code: PAXT0010

Technical Specifications
