Product Code: OTDC315FV11-ESS

ABB offers new OTDC Switch-disconnectors specially designed for reliable switching for ESS applications were higher performance is needed. They are durable and virtually maintenance-free, and offer easy installation for all imaginable situations. Depending on the ESS layout and the customers wishes, the OTDC switch-disconnectors may be used in one or more sections of the overall setup, for the battery protection. Main characteristics of this particular OTDC type: Rated conditional short circuit current with fuses is 30kA, 2-Pole, 1500Vdc, Approved according to IEC 60947-1, -3

No. of Switches	1
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Operational Current DC-21B 1500V (A)	315
Rated Operational Current DC-PV2 1500V (A)	315
Brand	ABB
Degree of Protection	IP20
Dimensions (mm)	157.5W x 211H x 135D
Mounting Type	Front Mount 4-hole
NEMA Degree of Protection	1
No. of Circuits	1
No. of Poles	2
Rated Impulse Withstand Voltage (kV)	12
Rated Operational Voltage (V)	1500
Rated Short-Time Withstand Current - Icw (kA)	10
Rated Short-time Withstand Current - Icw (kA/1s)	10
Rated Uninterrupted Current - Iu (A)	315
Standards and Approvals	IEC 60947-1, -3
Suitable For	Distribution Board Installation
Terminal Type	Lug
Type	Main Switch

Photovoltaic Isolators & Protection

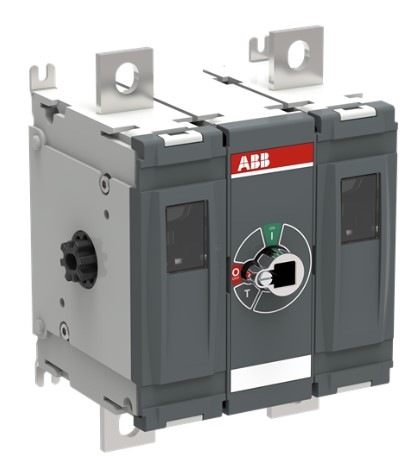

ABB OTDC315FV11-ESS DC SWITCH-DISCONNECTOR OTDC315FV11-ESS
