Product Code: OT315KFCC6T

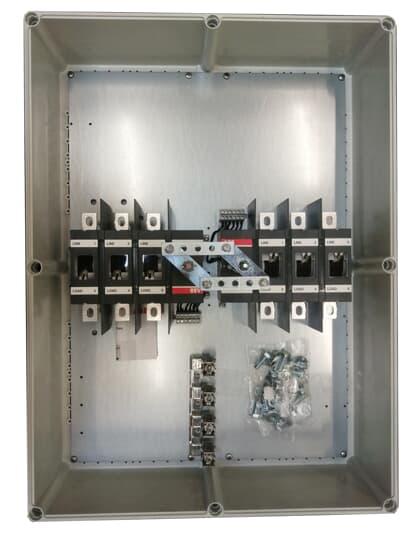

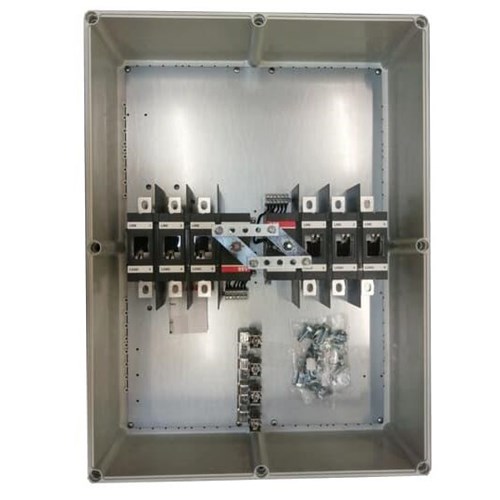

Safety switch, 6-p. 415V AC23 315A, 160kW. Mounted auxiliary contact: 4NO2NC. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. PE terminals included.

Brand	ABB
Control Element Colour	Black
No. of Normally-closed Auxiliary Contacts	2
No. of Normally-open Auxiliary Contacts	4
Cable Entry	Up/Down
Conventional Thermal Current - Ithe (A)	315 (Fully Enclosed)
Degree of Protection	IP65
Dimensions (mm)	560W x 760H
Enclosure Material	Plastic
Handle Type	Pistol
Maximum Operational Voltage AC (V)	1000
NEMA Degree of Protection	1
No. of Poles	6
Pollution Degree	3
Rated Conditional Short-Circuit Current - Inc (kA)	61.5
Rated Operational Current AC-22A 380-415V (A)	315
Rated Operational Current AC-23A 380-415V (A)	315
Rated Operational Power AC-23A 380-415V (kW)	160
Rated Operational Voltage (V)	1000
Rated Short-Time Withstand Current - Icw (kA)	15
Rated Uninterrupted Current - Iu (A)	315
Standards and Approvals	IEC 60947-1, -3
Suitable For	Distribution Board Installation
Tightening Torque (Nm)	44 (Main Circuit)
Type	Main Switch
Weight (kg)	19.43 (Net)
