Product Code: OT25ETMM3TE

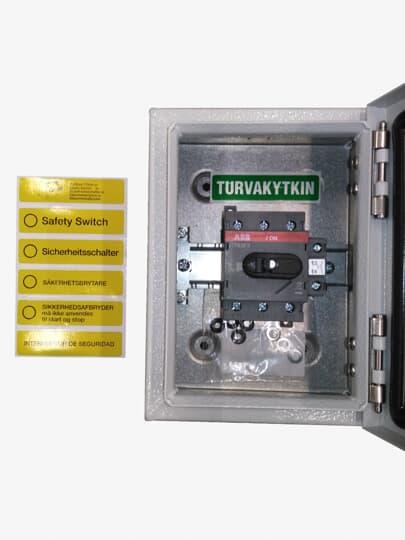

EMC safety switch, 3-p. 415V AC23 30A, 15kW. Mounted auxiliary contact: 1NO0NC. Steel sheet enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure of the OTL series is made of rigid alu-zinc coated steel with polyester powder coating. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water exposure and Immersion in accordance with UL746C. The cable entries are of knock out types. EMC cable glands to be used. PE terminal included.

Brand	ABB
Control Element Colour	Black
No. of Normally-open Auxiliary Contacts	1
Cable Cross Section (mm²)	1.5 - 35
Cable Entry	Up/Down
Conventional Thermal Current - Ithe (A)	63 (Fully Enclosed)
Degree of Protection	IP65
Dimensions (mm)	150W x 200H x 100D
Enclosure Material	Steel sheet
Function	EMC
Handle Type	Selector
Maximum Operational Voltage AC (V)	750
NEMA Degree of Protection	1
No. of Poles	3
Pollution Degree	3
Rated Operational Current AC-22A 380-415V (A)	45
Rated Operational Current AC-23A 380-415V (A)	30
Rated Operational Power AC-23A 380-415V (kW)	15
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	1
Rated Uninterrupted Current - Iu (A)	63
Standards and Approvals	IEC 60947-1, -3
Suitable For	Distribution Board Installation
Tightening Torque (Nm)	0.8 (Main Circuit)
Type	Main Switch
Weight (kg)	1.9 (Net)
