Connection Configuration	Type 1
Net Weight (kg)	17.2
Operating Mechanism	Mechanism at the End of the Switch (Left Side)
Rated Operational Current (A)	DC-20B: (1500V DC) 2500A AC-20B: (1000V DC) 2500A
Shaft Diameter (mm)	12
Shaft Length (mm)	280
Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	T = 40 °C 2500 A
Dimensions (mm)	346.5W x 376.5H x 15.5D
Handle Colour	Black
Handle Length (mm)	274
Mounting Type	Base Mounting
No. of Circuits	1
No. of Poles	2
Power Loss (W)	85W Per Pole
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1500
Rated Short-Time Withstand Current - Icw (kA)	For 0.3s 80kA
Rated Voltage (V)	1500
Standards and Approvals	IEC 60947-1, -3

Photovoltaic Isolators & Protection

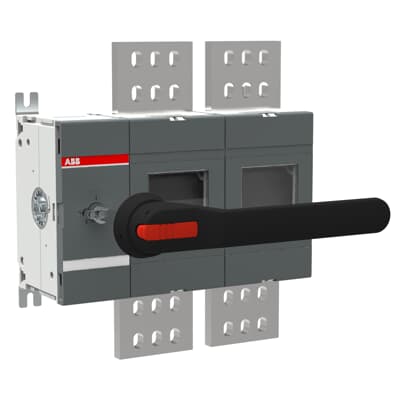

ABB 2500A 2P SWITCH-DISCONNECTOR OT2500E02P-135
