Fuse Size	NH0, NH1
Net Weight (kg)	3
Brand	ABB
Dimensions (mm)	208W x 149H x 203D
Handle Type	Pistol Handle
Mounting Type	Base mounting
No. of Poles	3P
Pollution Degree	3
Power Loss (W)	23
Rated Conditional Short-Circuit Current - Inc (kA)	80
Rated Current (A)	250 (Main Circuit)
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-21A 500V (A)	250
Rated Operational Current AC-22A 500V (A)	250
Rated Operational Current AC-22A 690V (A)	250
Rated Operational Power AC-23A 415V (kW)	145
Rated Operational Power AC-23A 500V (kW)	170
Rated Operational Power AC-23A 690V (kW)	250
Rated Operational Voltage AC (V)	690
Standards	IEC 60947-3
Terminal Type	Lug terminals
Tightening Torque (Nm)	30 ... 44

Switch Disconnectors

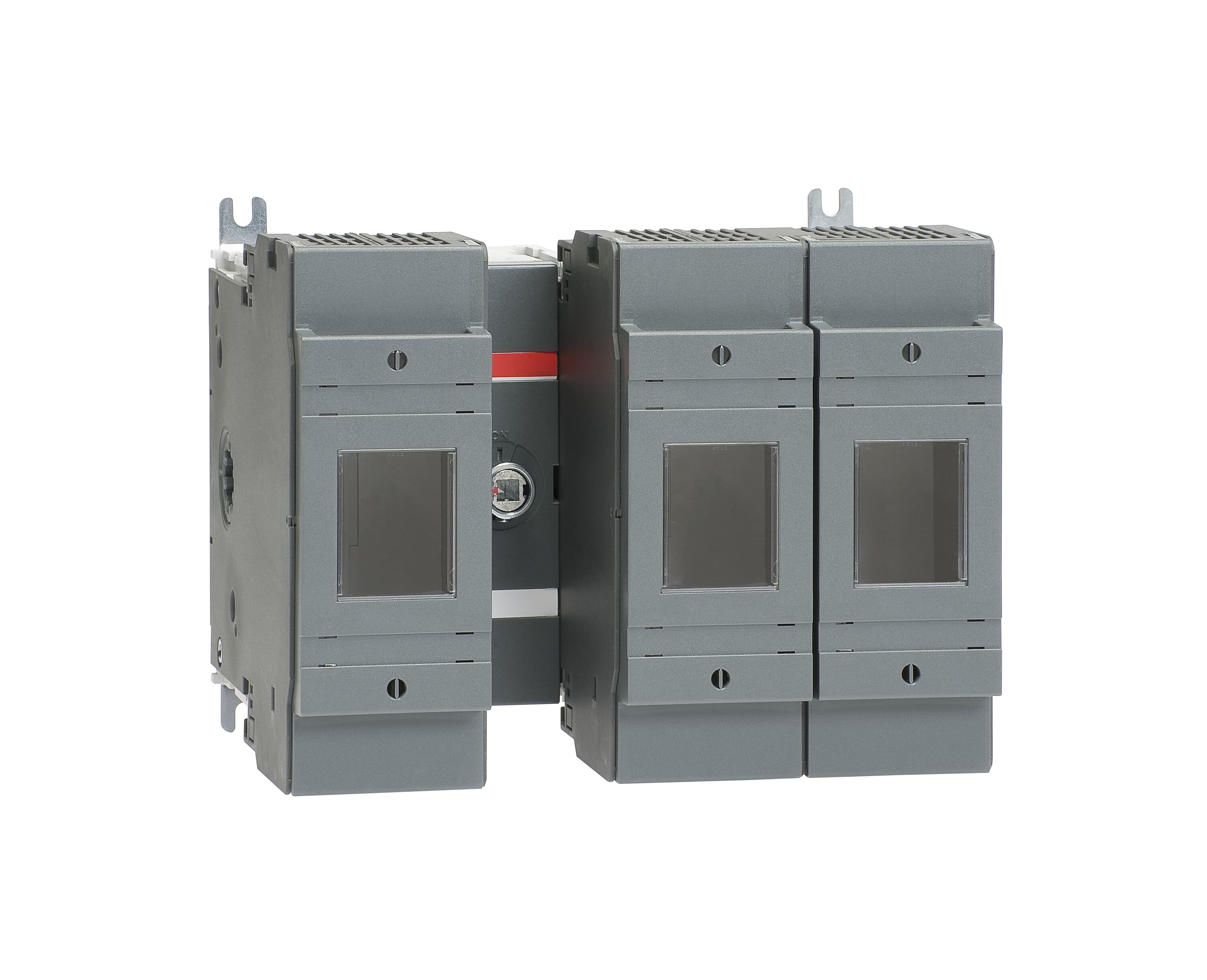

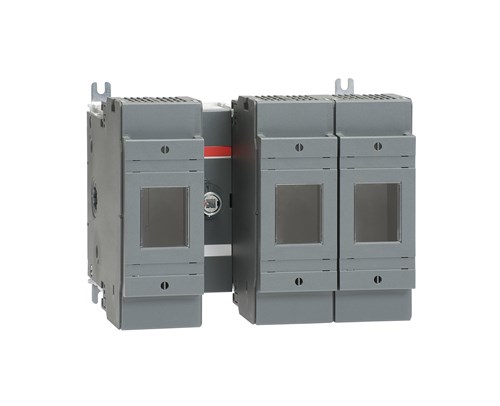

ABB ABB SWITCH FUSE 250A 3P DIN HANDLE+SHAFT, FRONT OPERATED OS250D12BBP
