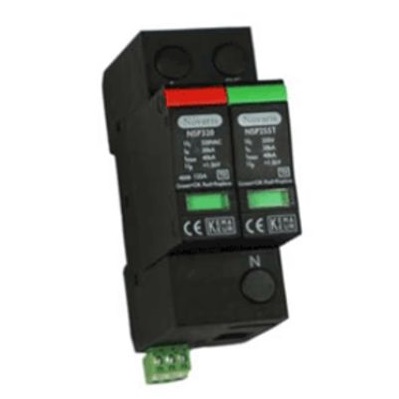

NOVARIS TYPE 2 SPD, 40KA, FOR LV POWER SYSTEM PROT. NSP1-40-320-N

Product Code: NSP1-40-320-N

The Novaris NSP Surge Diverter range offers a type 2 SPD certified by IEC standards, ideal for protecting low voltage power systems from surges. It features a pluggable design with easy module replacement and fault indication, ensuring robust and reliable surge protection.

Technical Specifications

Brand NOVARIS
Connection Type Shunt
Degree of Protection IP20
Dimensions (mm) 36W x 65H x 98L
Lightning Impulse Current (10/350 µs) - Iimp (kA) 4 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V) 320 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 40 (L-N, N-PE)
Mounting Type DIN Rail
No. of Phases 1
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-N, N-PE)
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Series NSP
Standards and Approvals IEC 61643-11
Voltage Protection Level - Up (kV) <1.5 (L-N)
Weight (kg) 0.2
