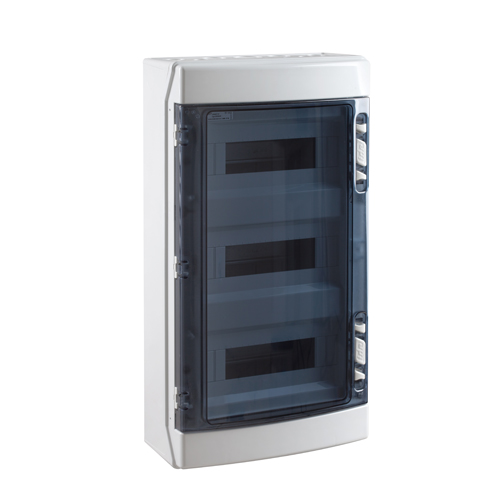

When selecting an enclosure for your industrial or commercial needs, it's essential to consider a product that offers reliability and meets stringent standards. Our Halogen free enclosure is designed with precision to cater to the demanding requirements of various applications.
Rated at 125 A, this surface-mounted enclosure provides robust protection and versatility. It boasts compliance with several critical standards: IEC 62208, Directive 2014/35/EU, AS/NZS 61439.3:2016 Appendix ZZ Clauses 10.101 and 10.102, and AS/NZS 3000 Clause 2.10.4.2—ensuring it meets both international and local safety regulations.
Weighing in at a manageable 3.1 kg, this unit can be easily handled during installation without compromising on durability or performance. With a rated voltage capacity of up to 1500 VDC, it is well-suited for high-voltage applications.
The degree of protection is rated IP65, offering complete dust-tight assurance and protection against powerful water jets—a crucial feature for outdoor installations or harsh environments where exposure to elements is inevitable.
Measuring at a width of 310 mm, height of 586 mm, and depth of 148 mm, the dimensions are compact enough for convenient placement while providing ample internal space for components.
Constructed from halogen-free plastic material in RAL 7035 light grey color ensures not only environmental friendliness but also aesthetic integration into most settings. The ambient temperature range from -25 to +40 degrees Celsius allows flexibility across diverse climatic conditions.
With an IK08 impact resistance rating, the enclosure withstands significant mechanical stress—ideal for areas prone to physical impacts or vibrations.
Cable entry options include top, bottom, and oblong rear entries—facilitating versatile wiring configurations tailored to specific project needs.
Insulation Class II (double insulation) enhances safety by providing additional electrical isolation layers between conductive parts.
The transparent window type combined with tinted PC lid material offers visibility into the contents while maintaining structural integrity—perfect for quick inspections without opening the enclosure unnecessarily.
Lastly, its ability to pass the ball pressure test at temperatures up to 70 degrees Celsius further underscores its resilience under thermal stress conditions often encountered in industrial settings.
